Laying Out Your PyQt6 GUIs With Qt Designer
Use Qt Designer to effortlessly build your application UI

PyQt6 Tutorial Creating applications with Qt Designer

Heads up! You've already completed this tutorial.

When laying out your PyQt6 GUIs it can be quite a tricky task to place every widget in the right position on your forms. Fortunately, Qt offers a set of layout managers that simplify the process of widget positioning and will allow you to easily create any kind of layout. To lay out the widget in a form, you can create everything in code, or you can create your layout with Qt Designer. In this tutorial, you'll learn how to use Qt's layouts with Qt Designer to build complex GUIs for your applications.

Additionally, we'll create a dialog example using several widgets with a coherent layout to reinforce your knowledge and put everything together into a fully functional dialog just like you would create in a real-world application.

Using Layouts With Qt Designer

Qt Designer is the Qt tool for designing and creating graphical user interfaces (GUI) for desktop applications. With Qt Designer, you can create windows, dialogs, and forms. It allows you to add different kind of widgets to create your GUIs using on-screen forms and a drag-and-drop based interface.

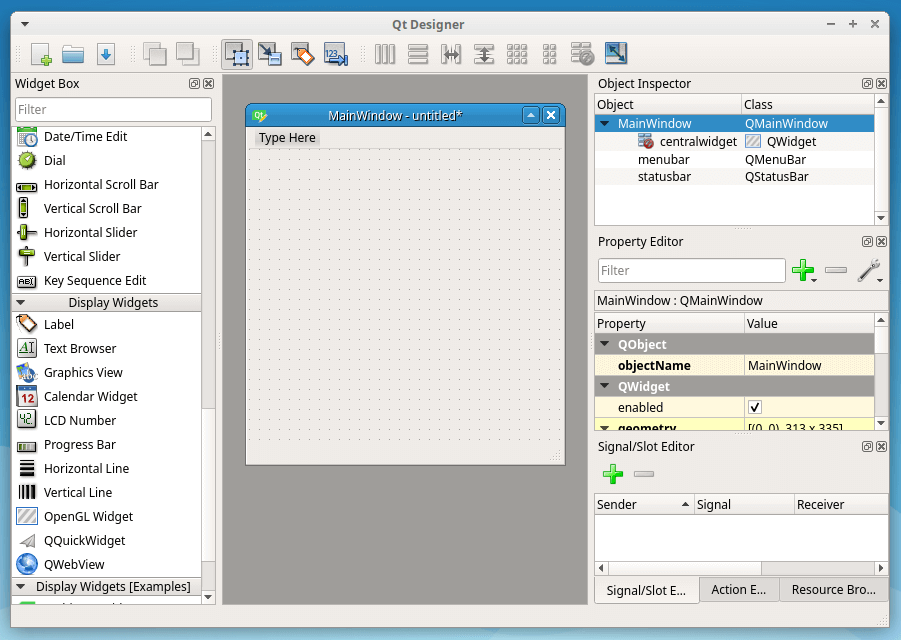

Qt Designer's main interface looks as follows —

Qt Designer — Main Interface Qt Designer — Main Interface

Qt Designer has a clear and user-friendly interface that allows you to create any kind of GUI by dragging widget onto an empty form. After you place all the widgets on your form, you need to place them in a coherent layout. This will ensure that all your widgets will be displayed and resized properly when the form is previewed or used in an application.

Qt's layout managers are structured containers which automatically arrange child widgets ensuring that they make good use of the available space. Placing widgets within a layout manager automatically lays them out according to the defined rules. One of Qt Designer's most useful features is the ability to drag and drop hierarchies of layout managers to arrange widgets into clean and functional interfaces.

In Qt Designer, you can create layout objects by applying a layout to a group of existing widgets. Although it's possible to drag layouts onto a form and then drag widgets into the layouts, this can be a bit fiddly. The best practice is to instead drag all the widgets and spacers you need onto the form and then select related widgets and spacers and apply the layouts to them. Use the following steps —

  1. Drag and drop the widgets on the form trying to place them near their desired position
  2. Select the widgets that should be managed with a given layout, by holding the Ctrl key and clicking on them
  3. Apply the appropriate layout (horizontal, vertical, grid, or form) using Qt Designer's toolbar, main menu, or the form's context menu

Before you go into an example, take a look at the layout related options that Qt Designer offers —

  1. Use layout options on the main toolbar
  2. Use layout options on the main menu
  3. Use layout options on the form's context menu

The most accessible way for creating layouts is using the layout section of Qt Designer's main toolbar. This section looks as follows —

Qt Designer — Layout toolbar Qt Designer — Layout toolbar

From left to right, you'll find the following buttons —

  • Lay Out Horizontally arranges selected widgets in a horizontal layout next to each other (Key combination, Ctrl+1). This option uses a standard QHBoxLayout object
  • Lay Out Vertically arranges selected widgets in a vertical layout, one below another (key combination, Ctrl+2). This option uses a standard QVBoxLayout object
  • Lay Out Horizontally in Splitter arranges the widgets horizontally using a splitter (Key combination, Ctrl+3)
  • Lay Out Vertically in Splitter arranges the widgets vertically using a splitter (Key combination, Ctrl+4)
  • Lay Out in a Grid arranges widgets in a table-like grid (rows and columns). By default, each widget occupies one cell of the grid, but you can modify this behavior and make the widgets to span several cells (Key combination, Ctrl+5). This option uses a standard QGridLayout object
  • Lay Out in a Form Layout arranges selected widgets in a two-column layout. The left column is usually for labels asking for some information and the right column includes widgets for entering, editing, or showing that information (Key combination, Ctrl+6)
  • Break Layout this key allows you to brake an existing layout. Once widgets are arranged in a layout, you cannot move and resize them individually, because their geometry is controlled by the layout. To modify individual widgets, you'll need to break the layout and redo it later (Key combination Ctrl+0)
  • Adjust Size adjusts the size of the layout to accommodate contained widgets and to ensure that each has enough space to be visible (Key combination Ctrl+J)

These same layout related options are also available through Qt Designer's main menu under the Form menu and through the form's context menu, so you can choose the one you like better.

Now we have the theory out of the way, we can put these layouts into practise. In the next few sections, we'll be using Qt Designer to lay out the widgets on our forms and build nice and elegant GUIs for your desktop applications. But before we start experimenting with the different layout managers that Qt offers, we're first going to create a custom widget to visualize the layouts as we go through this tutorial.

The completed .ui file can be downloaded below if you would like to skip this step.


Go ahead and fire up your Qt Designer, then run the following steps —

  1. Select Widget at the templates/forms tab of the New Form dialog. This will create a new empty form to work on.
  2. Save your form as layout-labels.ui.
  3. Look for a Label widget on the Widget Box and drag it onto the form.
  4. Go to the Property Editor and set the text property to 0.
  5. Open the Text Edit dialog and set the text color to white. Set the font size to 20 points and justify the text. Press OK to apply the changes.
  6. Go to the Property Editor and set the autoFillBackground property to True by selecting the check box.
  7. Look up the palette property and open the Edit Palette dialog. Use the Quick option to set the color to red.

If you feel lost, take a look at the following screencast to see the steps in action —

In this example, you create a new window based on the Widget template. Then, you add a Label, set its text property to 0, and set its background color to red.

To complete this example, repeat all the steps to add three more labels with their respective text set to 1, 2, and 3 and their colors set to green, yellow, and blue. You'll end up with a form like this:

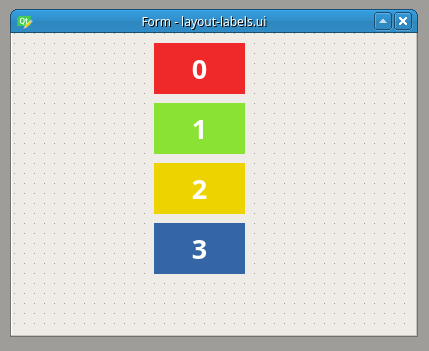

Qt Designer — Form with colored labels Qt Designer — Form with colored labels

The above screenshot shows the initial form that you'll use for the next few sections. It's a clean form with four label objects on it. You can set a background color to each label to be able to see and differentiate them more easily in the following sections.

Horizontal Layouts, QHBoxLayout

You can use a horizontal layout manager (QHBoxLayout) to arrange the widgets in one row. To create this kind of layout in code, you need to instantiate the QHBoxLayout class and then add your widgets to the layout object. In Qt Designer it's easier to work in the other way around.

With your layout-labels.ui file open, first select all your labels. To do this, you can click each widget in turn while you hold the Ctrl key or you can also click and drag with the mouse pointer inside the form to select the widgets.

Once you have selected the widgets, put them in a horizontal layout by selecting the Lay Out Horizontally button in the Qt Designer's main toolbar. You can also use the option Lay out->Lay Out Horizontally from the context menu shown below or you can press Ctrl+1. The following screencast will guide you through these steps —

If the layout is wrong, then you can easily undo everything and restart laying things out again. To undo things, you can press Ctrl+z or use the Edit menu from Qt Designer's main menubar. If that isn't possible or doesn't work, then you can just break the layout using the Break Layout button from Qt Designer's main toolbar. Another way to break a layout is to press Ctrl+0 or choose Break Layout from the form's context menu.

Vertical Layouts, QVBoxLayout

You can use a vertical layout (QVBoxLayout) to arrange your widgets in one column one above the other. This can be very useful when you're creating groups of widgets and you need to ensure that they are vertically aligned.

Starting up with your original layout-labels.ui file, the first step will be to select the widgets that you need to include in the vertical layout. After that, you can click on the Lay Out Vertically button over the main toolbar, or you can use the context menu, or you can also press Ctrl+2. The following screencast will guide you through these steps —

If you take a closer look at the screencast, then you can see that the layout object is indicated by a thin red frame surrounding the labels on the form. This red frame isn't visible at preview or at runtime it's just a guide you can use when you're designing the form. Also notices that, the layout object appears in the Object Inspector and its properties (margins and constraints) are shown in the Property Editor.

Grid Layouts, QGridLayout

Sometimes you need to lay out your widgets both horizontally and vertically within the same layout. To do this, you can use a grid layout manager (QGridLayout). Grid layout managers lay out your widgets in a square or rectangular grid, with all widgets aligning vertically and horizontally with their neighbours. This kind of layout can give you much more freedom to arrange your widgets on a form, while maintaining some degree of structure. This arrangement can be more suitable than nested arrangement of horizontal and vertical layouts, particularly when you care about the alignment of adjacent rows or columns.

You can build a grid layout with Qt Designer in the same way as for other layouts. The first step is to select the group of widgets that you want to lay out using a grid layout manager. Then, you can use the toolbar, the context menu, or you can press Ctrl+5 to set up the layout. Watch the following screencast —

In this case, we use a 2 x 2 grid layout to arrange the labels on your form. Notice that, to use this kind of layout, you should first place your widgets in rows and columns on the form, as shown in the screencast above. Qt Designer is quite clever and will try to keep your design as similar as possible to what you initially created by hand. It can even create difficult multi-column arrangements automatically or automatically fill empty cells.

Form Layouts, QFormLayout

While a QGridLayout can be used to layout forms with inputs and labels in two columns, Qt also provides a layout designed specifically for this purpose — (QFormLayout). This type of layout is ideal when you're creating a structured data-entry or database application. The left column will commonly hold labels that ask for some information. The right column holds the input widgets such as line edits (QLineEdit), spin boxes (QSpinBox), date edits (QDateEdit), combo boxes (QComboBox), and so on.

The advantage of using this layout over QGridLayout is that it is simpler to work with when you only need two columns. The following screencast shows it in action —

In this example, we first add four new labels. These labels will hold information about the data you need to be entered or edited in the second column. In this case, the second column holds your tests colored labels, but usually this column will be used to place input widget like line edits, spin boxes, combo boxes, and so on.

Splitter Layouts

Splitters are container objects that arrange widgets horizontally or vertically in two resizeable panels. With this kind of layout, you can freely adjust the amount of space that each panel occupy on your form, while keeping the total space used constant. In Qt splitter layouts are managed using QSplitter.

Even though splitters are technically a container widget (not a layout), Qt Designer treats them as layouts that can be applied to existing widgets. To place a group of widgets into a splitter, you first select them as usually and then apply the splitter by using the appropriate toolbar button, keyboard shortcut, or context menu option in Qt Designer Take a look at the following screencast —

In this example, we first apply a horizontal splitter to your labels. Notice that, you'll need to launch the form preview if you want to see the splitter in action. You can launch the form preview by pressing Ctrl+R. Later on, we apply a vertical splitter to the labels. In each case, you can freely resize the widget using your mouse's pointer.

Building Other Layouts With Qt Designer

There are a few more things you can do with layouts in Qt Designer. For example, suppose you need to add a new widget to an existing layout, or to use nested layouts to arrange your widgets in a complex GUI. In the following few sections, we'll cover how to accomplish some of these tasks.

Inserting Objects into an Existing Layout

Objects can be inserted into an existing layout by dragging them from their current positions and dropping them at the required position in the layout. A blue cursor is displayed in the layout when an object is dragged over it to indicate where the object will be placed.

Take a look at the following screencast where we put three of our labels in a vertical layout and then realize the we left the blue label out of the game —

It's also possible to move or change the position of a given widget in a layout. To do this, just drag and drop the widget to its new position in the layout. Remember to follow the blue line to get this right.

Nesting Layouts to Build Complex GUIs

You can also nest layout managers one inside another using Qt Designer. The inner layout then becomes a child of the enclosing layout. By doing this you can iteratively create very complex, yet well-structured user interfaces.

Layouts can be nested as deep as you need. For example, to create a dialog with a horizontal row of buttons at the bottom and a bunch of other widgets aligned vertically on the form, you can use a horizontal layout for the buttons and a vertical layout for the rest of the widgets, then wrap these layouts in a vertical layout.

Coming back to our colored labels example, the following screencast shows the process of arranging a nested layout in Qt Designer —

In this example, we first arrange widgets in pair using a horizontal layout. Then we nest both of these layouts in a third layout, but this time a vertical one. The layouts can be nested as deep as required.

When you select a child layout, its parent layout can be selected by pressing the Shift key while clicking on it. This allows you to quickly select a specific layout in a hierarchy, which otherwise will be difficult to do because of the small frame delimiting each layout manager.
