PDF Report generator
Generate custom PDF reports using reportlab & pdfrw

If your job involves generating PDF reports, invoices, etc. you have probably thought about automating that with Python. Python has some great libraries for working with PDF files, allowing you to read and write PDFs from scripts. But you can also use these libraries as the basic of simple GUI tools, giving you an easy way to auto-fill or edit PDF reports on the desktop.

In this tutorial we'll be using two libraries to create a custom PDF report filler. The data will be collected using a Qt form: just edit the fields, press "Generate" to get the filled out form in the folder. The two libraries we'll be using here are --

  • reportlab which allows you to create PDFs using text and drawing primitives
  • pdfrw a library for reading and extracting pages from existing PDFs

While we could use reportlab to draw the entire PDF, it's easier to design a template using external tools and then simply overlay the dynamic content on this. We can use pdfrw to read our template PDF and then extract a page, onto which we can then draw using reportlab. That allows us to overlay custom information (from our app) directly onto an existing PDF template, which we save under a new name.

In this example we're entering the fields manually, but you can modify the application to read the data for the PDF from an external CSV file & generate multiple PDFs from it.

Template PDF

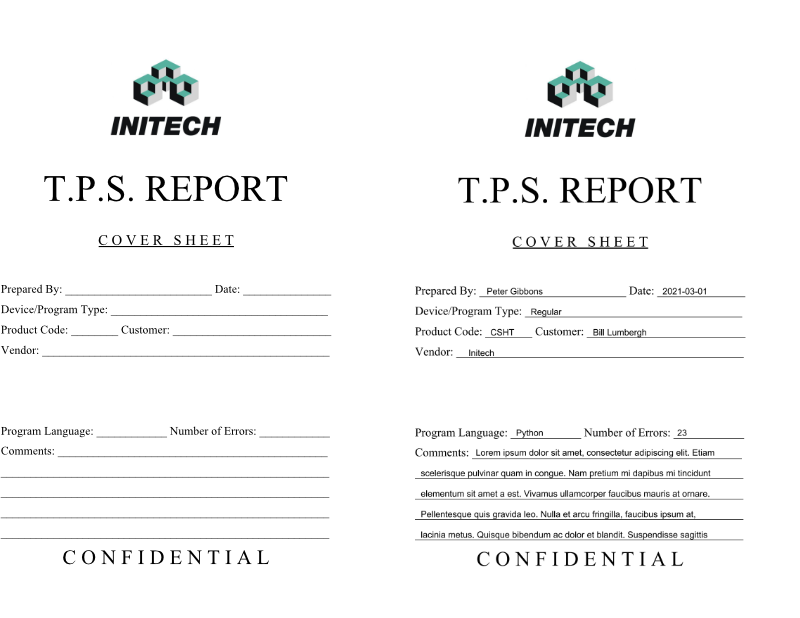

For testing I've created a custom TPS report template using Google Docs and downloaded the page as PDF. The page contains a number of fields which are to be filled. In this tutorial, we'll write a PyQt form which a user can fill in and then write that data out onto the PDF at the correct place.

TPS Report

The template is in A4 format. Save it in the same folder as your script.

If you have another template you'd prefer to use, feel free to use that. Just remember that you'll need to adjust the positions of the form fields when writing it.

Laying out the Form view

Qt includes a QFormLayout layout which simplifies the process of generating simple form layouts. It works similarly to a grid, but you can add rows of elements together and strings are converted automatically to QLabel objects. Our skeleton application, including the full layout matching the template form (more or less) is shown below.

python
from PyQt5.QtWidgets import QPushButton, QLineEdit, QApplication, QFormLayout, QWidget, QTextEdit, QSpinBox

class Window(QWidget):

    def __init__(self):
        super().__init__()

        self.name = QLineEdit()
        self.program_type = QLineEdit()
        self.product_code = QLineEdit()
        self.customer = QLineEdit()
        self.vendor = QLineEdit()
        self.n_errors = QSpinBox()
        self.n_errors.setRange(0, 1000)
        self.comments = QTextEdit()

        self.generate_btn = QPushButton("Generate PDF")

        layout = QFormLayout()
        layout.addRow("Name", self.name)
        layout.addRow("Program Type", self.program_type)
        layout.addRow("Product Code", self.product_code)
        layout.addRow("Customer", self.customer)
        layout.addRow("Vendor", self.vendor)
        layout.addRow("No. of Errors", self.n_errors)

        layout.addRow("Comments", self.comments)
        layout.addRow(self.generate_btn)

        self.setLayout(layout)


app = QApplication([])
w = Window()
w.show()
app.exec()
python
from PySide2.QtWidgets import QPushButton, QLineEdit, QApplication, QFormLayout, QWidget, QTextEdit, QSpinBox


class Window(QWidget):

    def __init__(self):
        super().__init__()

        self.name = QLineEdit()
        self.program_type = QLineEdit()
        self.product_code = QLineEdit()
        self.customer = QLineEdit()
        self.vendor = QLineEdit()
        self.n_errors = QSpinBox()
        self.n_errors.setRange(0, 1000)
        self.comments = QTextEdit()

        self.generate_btn = QPushButton("Generate PDF")

        layout = QFormLayout()
        layout.addRow("Name", self.name)
        layout.addRow("Program Type", self.program_type)
        layout.addRow("Product Code", self.product_code)
        layout.addRow("Customer", self.customer)
        layout.addRow("Vendor", self.vendor)
        layout.addRow("No. of Errors", self.n_errors)

        layout.addRow("Comments", self.comments)
        layout.addRow(self.generate_btn)

        self.setLayout(layout)


app = QApplication([])
w = Window()
w.show()
app.exec_()
python
from PyQt6.QtWidgets import QPushButton, QLineEdit, QApplication, QFormLayout, QWidget, QTextEdit, QSpinBox


class Window(QWidget):

    def __init__(self):
        super().__init__()

        self.name = QLineEdit()
        self.program_type = QLineEdit()
        self.product_code = QLineEdit()
        self.customer = QLineEdit()
        self.vendor = QLineEdit()
        self.n_errors = QSpinBox()
        self.n_errors.setRange(0, 1000)
        self.comments = QTextEdit()

        self.generate_btn = QPushButton("Generate PDF")

        layout = QFormLayout()
        layout.addRow("Name", self.name)
        layout.addRow("Program Type", self.program_type)
        layout.addRow("Product Code", self.product_code)
        layout.addRow("Customer", self.customer)
        layout.addRow("Vendor", self.vendor)
        layout.addRow("No. of Errors", self.n_errors)

        layout.addRow("Comments", self.comments)
        layout.addRow(self.generate_btn)

        self.setLayout(layout)


app = QApplication([])
w = Window()
w.show()
app.exec()
python
from PySide6.QtWidgets import QPushButton, QLineEdit, QApplication, QFormLayout, QWidget, QTextEdit, QSpinBox


class Window(QWidget):

    def __init__(self):
        super().__init__()

        self.name = QLineEdit()
        self.program_type = QLineEdit()
        self.product_code = QLineEdit()
        self.customer = QLineEdit()
        self.vendor = QLineEdit()
        self.n_errors = QSpinBox()
        self.n_errors.setRange(0, 1000)
        self.comments = QTextEdit()

        self.generate_btn = QPushButton("Generate PDF")

        layout = QFormLayout()
        layout.addRow("Name", self.name)
        layout.addRow("Program Type", self.program_type)
        layout.addRow("Product Code", self.product_code)
        layout.addRow("Customer", self.customer)
        layout.addRow("Vendor", self.vendor)
        layout.addRow("No. of Errors", self.n_errors)

        layout.addRow("Comments", self.comments)
        layout.addRow(self.generate_btn)

        self.setLayout(layout)


app = QApplication([])
w = Window()
w.show()
app.exec_()

When writing tools to replace/automate paper forms, it's usually a good idea to try and mimic the layout of the paper form so it's familiar.

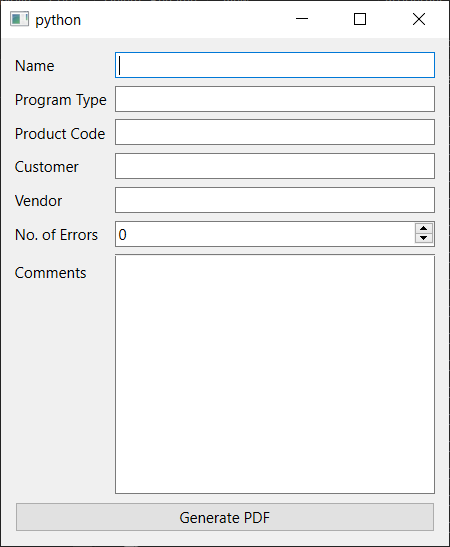

The above will give us the following layout in a window when run. You can already type things into the fields, but pressing the button won't do anything yet -- we haven't written the code to generate the PDF or hooked it up to the button.

The form layout

Generating a PDF

For PDF generation using a base template, we'll be combining reportlab and PdfReader. The process is as follows --

  1. Read in the template.pdf file using PdfReader, and extract the first page only.
  2. Create a reportlab Canvas object
  3. Use pdfrw.toreportlab.makerl to generate a canvas object then add it to the Canvas with canvas.doForm()
  4. Draw out custom bits on the Canvas
  5. Save the PDF to file

The code is shown below, this doesn't require Qt, you can save to a file and run as-is. When run the resulting PDF will be saved as result.pdf in the same folder.

python
from reportlab.pdfgen.canvas import Canvas
from pdfrw import PdfReader
from pdfrw.buildxobj import pagexobj
from pdfrw.toreportlab import makerl

outfile = "result.pdf"

template = PdfReader("template.pdf", decompress=False).pages[0]
template_obj = pagexobj(template)

canvas = Canvas(outfile)

xobj_name = makerl(canvas, template_obj)
canvas.doForm(xobj_name)

ystart = 443

# Prepared by
canvas.drawString(170, ystart, "My name here")

canvas.save()

Since the process of generating the PDF is doing IO, it may take some time (e.g. if we loading files off network drives). Because of this, it is better to handle this in a separate thread. We'll define this custom thread runner next.

Running the generation in a separate thread

Since each generation is an isolated job, it makes sense to use Qt's QRunner framework to handle the process -- this also makes it simple later to for example add customizable templates per job. We're using the same approach seen in the Multithreading tutorial where we use a subclass of QRunner to hold our custom run code, and implement runner-specific signals on a separate subclass of QObject.

python
from PyQt5.QtWidgets import QPushButton, QLineEdit, QApplication, QFormLayout, QWidget, QTextEdit, QMessageBox, QSpinBox
from PyQt5.QtCore import QObject, QRunnable, QThreadPool, pyqtSignal, pyqtSlot

from reportlab.pdfgen.canvas import Canvas

from pdfrw import PdfReader
from pdfrw.buildxobj import pagexobj
from pdfrw.toreportlab import makerl


class WorkerSignals(QObject):
    """
    Defines the signals available from a running worker thread.
    """
    error = pyqtSignal(str)
    file_saved_as = pyqtSignal(str)


class Generator(QRunnable):
    """
    Worker thread

    Inherits from QRunnable to handle worker thread setup, signals
    and wrap-up.

    :param data: The data to add to the PDF for generating.
    """

    def __init__(self, data):
        super().__init__()
        self.data = data
        self.signals = WorkerSignals()

    @pyqtSlot()
    def run(self):
        try:
            outfile = "result.pdf"

            template = PdfReader("template.pdf", decompress=False).pages[0]
            template_obj = pagexobj(template)

            canvas = Canvas(outfile)

            xobj_name = makerl(canvas, template_obj)
            canvas.doForm(xobj_name)

            ystart = 443

            # Prepared by
            canvas.drawString(170, ystart, self.data['name'])

            canvas.save()

        except Exception as e:
            self.signals.error.emit(str(e))
            return

        self.signals.file_saved_as.emit(outfile)
python
from PySide2.QtWidgets import QPushButton, QLineEdit, QApplication, QFormLayout, QWidget, QTextEdit, QMessageBox, QSpinBox
from PySide2.QtCore import QObject, QRunnable, QThreadPool, Signal, Slot

from reportlab.pdfgen.canvas import Canvas

from pdfrw import PdfReader
from pdfrw.buildxobj import pagexobj
from pdfrw.toreportlab import makerl


class WorkerSignals(QObject):
    """
    Defines the signals available from a running worker thread.
    """
    error = Signal(str)
    file_saved_as = Signal(str)


class Generator(QRunnable):
    """
    Worker thread

    Inherits from QRunnable to handle worker thread setup, signals
    and wrap-up.

    :param data: The data to add to the PDF for generating.
    """

    def __init__(self, data):
        super().__init__()
        self.data = data
        self.signals = WorkerSignals()

    @Slot()
    def run(self):
        try:
            outfile = "result.pdf"

            template = PdfReader("template.pdf", decompress=False).pages[0]
            template_obj = pagexobj(template)

            canvas = Canvas(outfile)

            xobj_name = makerl(canvas, template_obj)
            canvas.doForm(xobj_name)

            ystart = 443

            # Prepared by
            canvas.drawString(170, ystart, self.data['name'])

            canvas.save()

        except Exception as e:
            self.signals.error.emit(str(e))
            return

        self.signals.file_saved_as.emit(outfile)
python
from PyQt6.QtWidgets import QPushButton, QLineEdit, QApplication, QFormLayout, QWidget, QTextEdit, QMessageBox, QSpinBox
from PyQt6.QtCore import QObject, QRunnable, QThreadPool, pyqtSignal, pyqtSlot

from reportlab.pdfgen.canvas import Canvas

from pdfrw import PdfReader
from pdfrw.buildxobj import pagexobj
from pdfrw.toreportlab import makerl


class WorkerSignals(QObject):
    """
    Defines the signals available from a running worker thread.
    """
    error = pyqtSignal(str)
    file_saved_as = pyqtSignal(str)


class Generator(QRunnable):
    """
    Worker thread

    Inherits from QRunnable to handle worker thread setup, signals
    and wrap-up.

    :param data: The data to add to the PDF for generating.
    """

    def __init__(self, data):
        super().__init__()
        self.data = data
        self.signals = WorkerSignals()

    @pyqtSlot()
    def run(self):
        try:
            outfile = "result.pdf"

            template = PdfReader("template.pdf", decompress=False).pages[0]
            template_obj = pagexobj(template)

            canvas = Canvas(outfile)

            xobj_name = makerl(canvas, template_obj)
            canvas.doForm(xobj_name)

            ystart = 443

            # Prepared by
            canvas.drawString(170, ystart, self.data['name'])

            canvas.save()

        except Exception as e:
            self.signals.error.emit(str(e))
            return

        self.signals.file_saved_as.emit(outfile)

python
from PySide6.QtWidgets import QPushButton, QLineEdit, QApplication, QFormLayout, QWidget, QTextEdit, QMessageBox, QSpinBox
from PySide6.QtCore import QObject, QRunnable, QThreadPool, Signal, Slot

from reportlab.pdfgen.canvas import Canvas

from pdfrw import PdfReader
from pdfrw.buildxobj import pagexobj
from pdfrw.toreportlab import makerl


class WorkerSignals(QObject):
    """
    Defines the signals available from a running worker thread.
    """
    error = Signal(str)
    file_saved_as = Signal(str)


class Generator(QRunnable):
    """
    Worker thread

    Inherits from QRunnable to handle worker thread setup, signals
    and wrap-up.

    :param data: The data to add to the PDF for generating.
    """

    def __init__(self, data):
        super().__init__()
        self.data = data
        self.signals = WorkerSignals()

    @Slot()
    def run(self):
        try:
            outfile = "result.pdf"

            template = PdfReader("template.pdf", decompress=False).pages[0]
            template_obj = pagexobj(template)

            canvas = Canvas(outfile)

            xobj_name = makerl(canvas, template_obj)
            canvas.doForm(xobj_name)

            ystart = 443

            # Prepared by
            canvas.drawString(170, ystart, self.data['name'])

            canvas.save()

        except Exception as e:
            self.signals.error.emit(str(e))
            return

        self.signals.file_saved_as.emit(outfile)

We've defined two signals here:

  • file_saved_as which emits the filename of the saved PDF file (on success)
  • error which emits errors as a string for debugging

We need a QThreadPool to add run our custom runner on. We can add this onto our MainWindowin the __init__ block.

python
class Window(QWidget):

    def __init__(self):
        super().__init__()

        self.threadpool = QThreadPool()

Now we have the generator QRunner defined, we just need to implement the generate method to create the runner, pass it the data from our form fields and the start the generation running.

python
def generate(self):
    self.generate_btn.setDisabled(True)
    data = {
        'name': self.name.text(),
        'program_type': self.program_type.text(),
        'product_code': self.product_code.text(),
        'customer': self.customer.text(),
        'vendor': self.vendor.text(),
        'n_errors': str(self.n_errors.value()),
        'comments': self.comments.toPlainText()
    }
    g = Generator(data)
    g.signals.file_saved_as.connect(self.generated)
    g.signals.error.connect(print)  # Print errors to console.
    self.threadpool.start(g)

def generated(self, outfile):
    pass28

In this code we first disable the generate_btn so the user can't press the button multiple times while the generation is taking place. We then construct a dictionary of data from our widgets, using the .text() method to get the text from QLineEdit widgets, .value() to get the value from the QSpinBox and .toPlainText() to get the plain text representation of the QTextEdit. We convert the numeric value to a string, since we are placing text.

To actually generate the PDF we create an instance of the Generator runner we just defined, passing in the dictionary of data. We connect the file_saved_as signal to our generated method (defined at the bottom, but not doing anything yet) and the error signal to the standard Python print function: this will automatically print any errors to the console.

Finally, we take our Generator instance and pass it to our threadpool's .start() method to queue it to run (it should start immediately). We can then hook this method up to our button in the __init__ of our main window e.g.

python
    self.generate_btn.pressed.connect(self.generate)

If you run the app now, pressing the button will trigger the generation of the PDF and the result will be saved as result.pdf in the same folder as you started the app. So far we've only placed a single block of text on the page, so let's complete the generator to write all our fields in the correct place.

Completing the generator

Next we need to finish the text placement on the template. The trick here is to work out what the per-line spacing is for your template (depends on the font size etc.) and then calculate positions relative to the first line. The y coordinates increase up the page (so 0,0 is the bottom left) so in our code before, we define the ystart for the top line and then subtract 28 for each line.

python

ystart = 443

# Prepared by
canvas.drawString(170, ystart, self.data['name'])

# Date: Todays date
today = datetime.today()
canvas.drawString(410, ystart, today.strftime('%F'))

# Device/Program Type
canvas.drawString(230, ystart-28, self.data['program_type'])

# Product code
canvas.drawString(175, ystart-(2*28), self.data['product_code'])

# Customer
canvas.drawString(315, ystart-(2*28), self.data['customer'])

# Vendor
canvas.drawString(145, ystart-(3*28), self.data['vendor'])

ystart = 250

# Program Language
canvas.drawString(210, ystart, "Python")

canvas.drawString(430, ystart, self.data['n_errors'])

Wrapping

For most of our form fields we can just output the text as-is, since there are no line breaks. If the text entered is too long, then it will overflow -- but if we wanted we can limit this on the fields themselves by setting a max length in characters, e.g.

python
field.setMaxLength(25)

For the comments field, things are a little more tricky. The field can be much longer, and lines need to be wrapped over multiple lines in the template. The field also accepts line breaks (by pressing Enter) which cause problems when written out to the PDF.

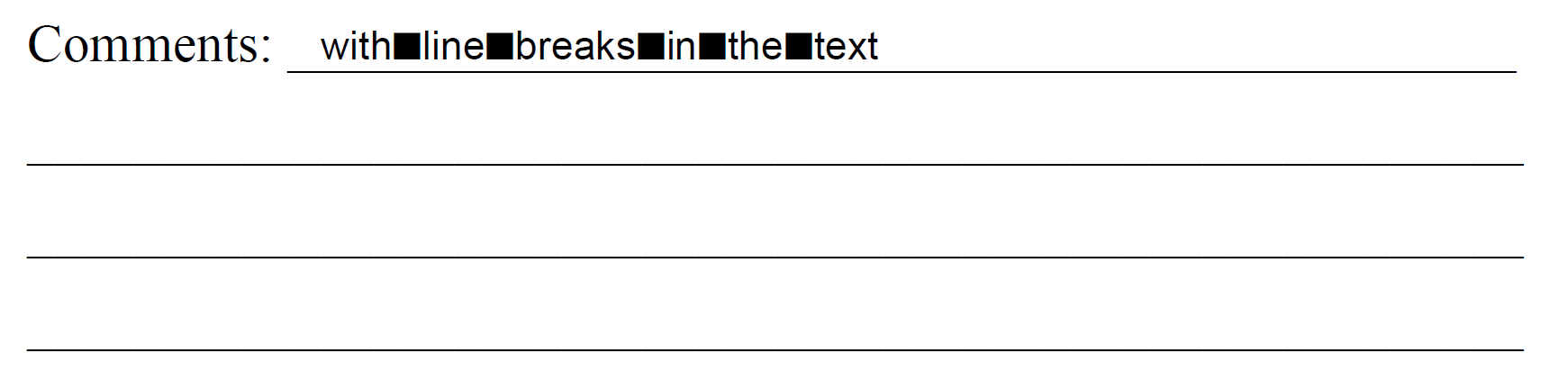

Line breaks show up as black squares

As you can see in the above screenshot, the line breaks appear as black squares in the text. The good news is that just removing the line breaks will make it easier to wrap: we can just wrap each line to a specified number of characters.

Since the characters are variable width this isn't perfect, but it shouldn't matter. If we wrap for a line-full of the widest characters (W) any real line will fit.

Python comes with the textwrap library built in, which we can use to wrap our text, once we've stripped the newlines.

python
import textwrap
comments = comments.replace('\n', ' ')
lines = textwrap.wrap(comments, width=80)

But we need to account for the first line being shorter, which we can do by wrapping first to the shorter length, re-joining the remainder, and re-wrapping it, e.g.

python
import textwrap
comments = comments.replace('\n', ' ')
lines = textwrap.wrap(comments, width=65) # 45
first_line = lines[0]
remainder = ' '.join(lines[1:])

lines = textwrap.wrap(remainder, 75) # 55
lines = lines[:4]  # max lines, not including the first.

The comment markers on the wrap lines (45 & 55) show the wrap length needed to fit a line of Ws into the space. This is the shortest possible line, but not realistic. The values used should work with most normal text.

To do this properly we should calculate the actual size of each length of text in the document font and use that to inform the wrapper.

Once we have the lines prepared, we can print them onto the PDF by iterating through the list and decrementing the y position for each time. The spacing between the lines in our template document is 28.

python
comments = self.data['comments'].replace('\n', ' ')
if comments:
    lines = textwrap.wrap(comments, width=65) # 45
    first_line = lines[0]
    remainder = ' '.join(lines[1:])

    lines = textwrap.wrap(remainder, 75) # 55
    lines = lines[:4]  # max lines, not including the first.

    canvas.drawString(155, 223, first_line)
    for n, l in enumerate(lines, 1):
        canvas.drawString(80, 223 - (n*28), l)

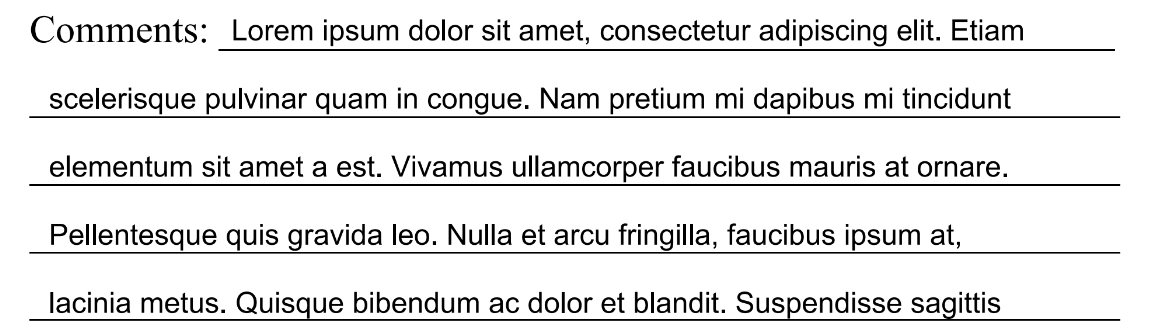

This gives the following result with some sample lorem ipsum text.

Lorem ipsum wrapped

Create GUI Applications with Python & Qt5
The easy way to create desktop applications

The complete guide to building GUI applications with PySide2. From the basics of creating a desktop window to the key features you need to build real apps.

Downloadable ebook (PDF, ePub) & Complete Source code

To support developers in [[ countryRegion ]] I give a [[ localizedDiscount[couponCode] ]]% discount on all books and courses with the code [[ couponCode ]] — Enjoy!

For [[ activeDiscount.description ]] I'm giving a [[ activeDiscount.discount ]]% discount on all books and courses with the code [[ couponCode ]] — Enjoy!

Automatically showing the result

When the file is created our runner returns the filename of the created file in a signal (currently it is always the same). It would be nice to present the resulting PDF to the user automatically, so they can check if everything looks good. On Windows we can use os.startfile to open a file with the default launcher for that type -- in this case opening the PDF with the default PDF viewer.

Since this isn't available on other platforms, we catch the error and instead show a QMessageBox

python

    def generated(self, outfile):
        self.generate_btn.setDisabled(False)
        try:
            os.startfile(outfile)
        except Exception:
            # If startfile not available, show dialog.
            QMessageBox.information(self, "Finished", "PDF has been generated")

Complete code

The complete code for PyQt5, PySide2, PyQt6 or PySide6 is shown below.

python
from PyQt5.QtWidgets import QPushButton, QLineEdit, QApplication, QFormLayout, QWidget, QTextEdit, QMessageBox, QSpinBox
from PyQt5.QtCore import QObject, QRunnable, QThreadPool, pyqtSignal, pyqtSlot

from reportlab.pdfgen.canvas import Canvas

import os

import textwrap
from datetime import datetime

from pdfrw import PdfReader
from pdfrw.buildxobj import pagexobj
from pdfrw.toreportlab import makerl


class WorkerSignals(QObject):
    """
    Defines the signals available from a running worker thread.
    """
    error = pyqtSignal(str)
    file_saved_as = pyqtSignal(str)


class Generator(QRunnable):
    """
    Worker thread

    Inherits from QRunnable to handle worker thread setup, signals
    and wrap-up.

    :param data: The data to add to the PDF for generating.
    """

    def __init__(self, data):
        super().__init__()
        self.data = data
        self.signals = WorkerSignals()

    @pyqtSlot()
    def run(self):
        try:
            outfile = "result.pdf"

            template = PdfReader("template.pdf", decompress=False).pages[0]
            template_obj = pagexobj(template)

            canvas = Canvas(outfile)

            xobj_name = makerl(canvas, template_obj)
            canvas.doForm(xobj_name)

            ystart = 443

            # Prepared by
            canvas.drawString(170, ystart, self.data['name'])

            # Date: Todays date
            today = datetime.today()
            canvas.drawString(410, ystart, today.strftime('%F'))

            # Device/Program Type
            canvas.drawString(230, ystart-28, self.data['program_type'])

            # Product code
            canvas.drawString(175, ystart-(2*28), self.data['product_code'])

            # Customer
            canvas.drawString(315, ystart-(2*28), self.data['customer'])

            # Vendor
            canvas.drawString(145, ystart-(3*28), self.data['vendor'])

            ystart = 250

            # Program Language
            canvas.drawString(210, ystart, "Python")

            canvas.drawString(430, ystart, self.data['n_errors'])

            comments = self.data['comments'].replace('\n', ' ')
            if comments:
                lines = textwrap.wrap(comments, width=65) # 45
                first_line = lines[0]
                remainder = ' '.join(lines[1:])

                lines = textwrap.wrap(remainder, 75) # 55
                lines = lines[:4]  # max lines, not including the first.

                canvas.drawString(155, 223, first_line)
                for n, l in enumerate(lines, 1):
                    canvas.drawString(80, 223 - (n*28), l)

            canvas.save()

        except Exception as e:
            self.signals.error.emit(str(e))
            return

        self.signals.file_saved_as.emit(outfile)


class Window(QWidget):

    def __init__(self):
        super().__init__()

        self.threadpool = QThreadPool()

        self.name = QLineEdit()
        self.program_type = QLineEdit()
        self.product_code = QLineEdit()
        self.customer = QLineEdit()
        self.vendor = QLineEdit()
        self.n_errors = QSpinBox()
        self.n_errors.setRange(0, 1000)
        self.comments = QTextEdit()

        self.generate_btn = QPushButton("Generate PDF")
        self.generate_btn.pressed.connect(self.generate)

        layout = QFormLayout()
        layout.addRow("Name", self.name)
        layout.addRow("Program Type", self.program_type)
        layout.addRow("Product Code", self.product_code)
        layout.addRow("Customer", self.customer)
        layout.addRow("Vendor", self.vendor)
        layout.addRow("No. of Errors", self.n_errors)

        layout.addRow("Comments", self.comments)
        layout.addRow(self.generate_btn)

        self.setLayout(layout)

    def generate(self):
        self.generate_btn.setDisabled(True)
        data = {
            'name': self.name.text(),
            'program_type': self.program_type.text(),
            'product_code': self.product_code.text(),
            'customer': self.customer.text(),
            'vendor': self.vendor.text(),
            'n_errors': str(self.n_errors.value()),
            'comments': self.comments.toPlainText()
        }
        g = Generator(data)
        g.signals.file_saved_as.connect(self.generated)
        g.signals.error.connect(print)  # Print errors to console.
        self.threadpool.start(g)

    def generated(self, outfile):
        self.generate_btn.setDisabled(False)
        try:
            os.startfile(outfile)
        except Exception:
            # If startfile not available, show dialog.
            QMessageBox.information(self, "Finished", "PDF has been generated")


app = QApplication([])
w = Window()
w.show()
app.exec_()
python
from PySide2.QtWidgets import QPushButton, QLineEdit, QApplication, QFormLayout, QWidget, QTextEdit, QMessageBox, QSpinBox
from PySide2.QtCore import QObject, QRunnable, QThreadPool, Signal, Slot

from reportlab.pdfgen.canvas import Canvas

import os

import textwrap
from datetime import datetime

from pdfrw import PdfReader
from pdfrw.buildxobj import pagexobj
from pdfrw.toreportlab import makerl


class WorkerSignals(QObject):
    """
    Defines the signals available from a running worker thread.
    """
    error = Signal(str)
    file_saved_as = Signal(str)


class Generator(QRunnable):
    """
    Worker thread

    Inherits from QRunnable to handle worker thread setup, signals
    and wrap-up.

    :param data: The data to add to the PDF for generating.
    """

    def __init__(self, data):
        super().__init__()
        self.data = data
        self.signals = WorkerSignals()

    @Slot()
    def run(self):
        try:
            outfile = "result.pdf"

            template = PdfReader("template.pdf", decompress=False).pages[0]
            template_obj = pagexobj(template)

            canvas = Canvas(outfile)

            xobj_name = makerl(canvas, template_obj)
            canvas.doForm(xobj_name)

            ystart = 443

            # Prepared by
            canvas.drawString(170, ystart, self.data['name'])

            # Date: Todays date
            today = datetime.today()
            canvas.drawString(410, ystart, today.strftime('%F'))

            # Device/Program Type
            canvas.drawString(230, ystart-28, self.data['program_type'])

            # Product code
            canvas.drawString(175, ystart-(2*28), self.data['product_code'])

            # Customer
            canvas.drawString(315, ystart-(2*28), self.data['customer'])

            # Vendor
            canvas.drawString(145, ystart-(3*28), self.data['vendor'])

            ystart = 250

            # Program Language
            canvas.drawString(210, ystart, "Python")

            canvas.drawString(430, ystart, self.data['n_errors'])

            comments = self.data['comments'].replace('\n', ' ')
            if comments:
                lines = textwrap.wrap(comments, width=65) # 45
                first_line = lines[0]
                remainder = ' '.join(lines[1:])

                lines = textwrap.wrap(remainder, 75) # 55
                lines = lines[:4]  # max lines, not including the first.

                canvas.drawString(155, 223, first_line)
                for n, l in enumerate(lines, 1):
                    canvas.drawString(80, 223 - (n*28), l)

            canvas.save()

        except Exception as e:
            self.signals.error.emit(str(e))
            return

        self.signals.file_saved_as.emit(outfile)


class Window(QWidget):

    def __init__(self):
        super().__init__()

        self.threadpool = QThreadPool()

        self.name = QLineEdit()
        self.program_type = QLineEdit()
        self.product_code = QLineEdit()
        self.customer = QLineEdit()
        self.vendor = QLineEdit()
        self.n_errors = QSpinBox()
        self.n_errors.setRange(0, 1000)
        self.comments = QTextEdit()

        self.generate_btn = QPushButton("Generate PDF")
        self.generate_btn.pressed.connect(self.generate)

        layout = QFormLayout()
        layout.addRow("Name", self.name)
        layout.addRow("Program Type", self.program_type)
        layout.addRow("Product Code", self.product_code)
        layout.addRow("Customer", self.customer)
        layout.addRow("Vendor", self.vendor)
        layout.addRow("No. of Errors", self.n_errors)

        layout.addRow("Comments", self.comments)
        layout.addRow(self.generate_btn)

        self.setLayout(layout)

    def generate(self):
        self.generate_btn.setDisabled(True)
        data = {
            'name': self.name.text(),
            'program_type': self.program_type.text(),
            'product_code': self.product_code.text(),
            'customer': self.customer.text(),
            'vendor': self.vendor.text(),
            'n_errors': str(self.n_errors.value()),
            'comments': self.comments.toPlainText()
        }
        g = Generator(data)
        g.signals.file_saved_as.connect(self.generated)
        g.signals.error.connect(print)  # Print errors to console.
        self.threadpool.start(g)

    def generated(self, outfile):
        self.generate_btn.setDisabled(False)
        try:
            os.startfile(outfile)
        except Exception:
            # If startfile not available, show dialog.
            QMessageBox.information(self, "Finished", "PDF has been generated")


app = QApplication([])
w = Window()
w.show()
app.exec_()
python
from PyQt6.QtWidgets import QPushButton, QLineEdit, QApplication, QFormLayout, QWidget, QTextEdit, QMessageBox, QSpinBox
from PyQt6.QtCore import QObject, QRunnable, QThreadPool, pyqtSignal, pyqtSlot

from reportlab.pdfgen.canvas import Canvas

import os

import textwrap
from datetime import datetime

from pdfrw import PdfReader
from pdfrw.buildxobj import pagexobj
from pdfrw.toreportlab import makerl


class WorkerSignals(QObject):
    """
    Defines the signals available from a running worker thread.
    """
    error = pyqtSignal(str)
    file_saved_as = pyqtSignal(str)


class Generator(QRunnable):
    """
    Worker thread

    Inherits from QRunnable to handle worker thread setup, signals
    and wrap-up.

    :param data:The data to add to the PDF for generating.
    """

    def __init__(self, data):
        super().__init__()
        self.data = data
        self.signals = WorkerSignals()

    @pyqtSlot()
    def run(self):
        try:
            outfile = "result.pdf"

            template = PdfReader("template.pdf", decompress=False).pages[0]
            template_obj = pagexobj(template)

            canvas = Canvas(outfile)

            xobj_name = makerl(canvas, template_obj)
            canvas.doForm(xobj_name)

            ystart = 443

            # Prepared by
            canvas.drawString(170, ystart, self.data['name'])

            # Date: Todays date
            today = datetime.today()
            canvas.drawString(410, ystart, today.strftime('%F'))

            # Device/Program Type
            canvas.drawString(230, ystart-28, self.data['program_type'])

            # Product code
            canvas.drawString(175, ystart-(2*28), self.data['product_code'])

            # Customer
            canvas.drawString(315, ystart-(2*28), self.data['customer'])

            # Vendor
            canvas.drawString(145, ystart-(3*28), self.data['vendor'])

            ystart = 250

            # Program Language
            canvas.drawString(210, ystart, "Python")

            canvas.drawString(430, ystart, self.data['n_errors'])

            comments = self.data['comments'].replace('\n', ' ')
            if comments:
                lines = textwrap.wrap(comments, width=65) # 45
                first_line = lines[0]
                remainder = ' '.join(lines[1:])

                lines = textwrap.wrap(remainder, 75) # 55
                lines = lines[:4]  # max lines, not including the first.

                canvas.drawString(155, 223, first_line)
                for n, l in enumerate(lines, 1):
                    canvas.drawString(80, 223 - (n*28), l)

            canvas.save()

        except Exception as e:
            self.signals.error.emit(str(e))
            return

        self.signals.file_saved_as.emit(outfile)


class Window(QWidget):

    def __init__(self):
        super().__init__()

        self.threadpool = QThreadPool()

        self.name = QLineEdit()
        self.program_type = QLineEdit()
        self.product_code = QLineEdit()
        self.customer = QLineEdit()
        self.vendor = QLineEdit()
        self.n_errors = QSpinBox()
        self.n_errors.setRange(0, 1000)
        self.comments = QTextEdit()

        self.generate_btn = QPushButton("Generate PDF")
        self.generate_btn.pressed.connect(self.generate)

        layout = QFormLayout()
        layout.addRow("Name", self.name)
        layout.addRow("Program Type", self.program_type)
        layout.addRow("Product Code", self.product_code)
        layout.addRow("Customer", self.customer)
        layout.addRow("Vendor", self.vendor)
        layout.addRow("No. of Errors", self.n_errors)

        layout.addRow("Comments", self.comments)
        layout.addRow(self.generate_btn)

        self.setLayout(layout)

    def generate(self):
        self.generate_btn.setDisabled(True)
        data = {
            'name': self.name.text(),
            'program_type': self.program_type.text(),
            'product_code': self.product_code.text(),
            'customer': self.customer.text(),
            'vendor': self.vendor.text(),
            'n_errors': str(self.n_errors.value()),
            'comments': self.comments.toPlainText()
        }
        g = Generator(data)
        g.signals.file_saved_as.connect(self.generated)
        g.signals.error.connect(print)  # Print errors to console.
        self.threadpool.start(g)

    def generated(self, outfile):
        self.generate_btn.setDisabled(False)
        try:
            os.startfile(outfile)
        except Exception:
            # If startfile not available, show dialog.
            QMessageBox.information(self, "Finished", "PDF has been generated")


app = QApplication([])
w = Window()
w.show()
app.exec()
python
from PySide6.QtWidgets import QPushButton, QLineEdit, QApplication, QFormLayout, QWidget, QTextEdit, QMessageBox, QSpinBox
from PySide6.QtCore import QObject, QRunnable, QThreadPool, Signal, Slot

from reportlab.pdfgen.canvas import Canvas

import os

import textwrap
from datetime import datetime

from pdfrw import PdfReader
from pdfrw.buildxobj import pagexobj
from pdfrw.toreportlab import makerl


class WorkerSignals(QObject):
    """
    Defines the signals available from a running worker thread.
    """
    error = Signal(str)
    file_saved_as = Signal(str)


class Generator(QRunnable):
    """
    Worker thread

    Inherits from QRunnable to handle worker thread setup, signals
    and wrap-up.

    :param data:The data to add to the PDF for generating.
    """

    def __init__(self, data):
        super().__init__()
        self.data = data
        self.signals = WorkerSignals()

    @Slot()
    def run(self):
        try:
            outfile = "result.pdf"

            template = PdfReader("template.pdf", decompress=False).pages[0]
            template_obj = pagexobj(template)

            canvas = Canvas(outfile)

            xobj_name = makerl(canvas, template_obj)
            canvas.doForm(xobj_name)

            ystart = 443

            # Prepared by
            canvas.drawString(170, ystart, self.data['name'])

            # Date: Todays date
            today = datetime.today()
            canvas.drawString(410, ystart, today.strftime('%F'))

            # Device/Program Type
            canvas.drawString(230, ystart-28, self.data['program_type'])

            # Product code
            canvas.drawString(175, ystart-(2*28), self.data['product_code'])

            # Customer
            canvas.drawString(315, ystart-(2*28), self.data['customer'])

            # Vendor
            canvas.drawString(145, ystart-(3*28), self.data['vendor'])

            ystart = 250

            # Program Language
            canvas.drawString(210, ystart, "Python")

            canvas.drawString(430, ystart, self.data['n_errors'])

            comments = self.data['comments'].replace('\n', ' ')
            if comments:
                lines = textwrap.wrap(comments, width=65) # 45
                first_line = lines[0]
                remainder = ' '.join(lines[1:])

                lines = textwrap.wrap(remainder, 75) # 55
                lines = lines[:4]  # max lines, not including the first.

                canvas.drawString(155, 223, first_line)
                for n, l in enumerate(lines, 1):
                    canvas.drawString(80, 223 - (n*28), l)

            canvas.save()

        except Exception as e:
            self.signals.error.emit(str(e))
            return

        self.signals.file_saved_as.emit(outfile)


class Window(QWidget):

    def __init__(self):
        super().__init__()

        self.threadpool = QThreadPool()

        self.name = QLineEdit()
        self.program_type = QLineEdit()
        self.product_code = QLineEdit()
        self.customer = QLineEdit()
        self.vendor = QLineEdit()
        self.n_errors = QSpinBox()
        self.n_errors.setRange(0, 1000)
        self.comments = QTextEdit()

        self.generate_btn = QPushButton("Generate PDF")
        self.generate_btn.pressed.connect(self.generate)

        layout = QFormLayout()
        layout.addRow("Name", self.name)
        layout.addRow("Program Type", self.program_type)
        layout.addRow("Product Code", self.product_code)
        layout.addRow("Customer", self.customer)
        layout.addRow("Vendor", self.vendor)
        layout.addRow("No. of Errors", self.n_errors)

        layout.addRow("Comments", self.comments)
        layout.addRow(self.generate_btn)

        self.setLayout(layout)

    def generate(self):
        self.generate_btn.setDisabled(True)
        data = {
            'name': self.name.text(),
            'program_type': self.program_type.text(),
            'product_code': self.product_code.text(),
            'customer': self.customer.text(),
            'vendor': self.vendor.text(),
            'n_errors': str(self.n_errors.value()),
            'comments': self.comments.toPlainText()
        }
        g = Generator(data)
        g.signals.file_saved_as.connect(self.generated)
        g.signals.error.connect(print)  # Print errors to console.
        self.threadpool.start(g)

    def generated(self, outfile):
        self.generate_btn.setDisabled(False)
        try:
            os.startfile(outfile)
        except Exception:
            # If startfile not available, show dialog.
            QMessageBox.information(self, "Finished", "PDF has been generated")


app = QApplication([])
w = Window()
w.show()
app.exec_()

Generating from a CSV file

In the above example you need to type the data to fill in manually. This is fine if you don't have a lot of PDFs to generate, but not so much fun if you have an entire CSV file worth of data to generate reports for. In the example below, rather than present a list of form fields to the user we just ask for a source CSV file from which PDFs can be generated -- each row in the file generates a separate PDF file using the data in the file.

python
from PyQt5.QtWidgets import QPushButton, QLineEdit, QApplication, QFormLayout, QWidget, QTextEdit, QMessageBox, QSpinBox, QFileDialog
from PyQt5.QtCore import QObject, QRunnable, QThreadPool, pyqtSignal, pyqtSlot

from reportlab.pdfgen.canvas import Canvas

import os, csv

import textwrap
from datetime import datetime

from pdfrw import PdfReader
from pdfrw.buildxobj import pagexobj
from pdfrw.toreportlab import makerl


class WorkerSignals(QObject):
    """
    Defines the signals available from a running worker thread.
    """
    error = pyqtSignal(str)
    finished = pyqtSignal()


class Generator(QRunnable):
    """
    Worker thread

    Inherits from QRunnable to handle worker thread setup, signals
    and wrap-up.

    :param data: The data to add to the PDF for generating.
    """

    def __init__(self, data):
        super().__init__()
        self.data = data
        self.signals = WorkerSignals()

    @pyqtSlot()
    def run(self):
        try:
            filename, _ = os.path.splitext(self.data['sourcefile'])
            folder = os.path.dirname(self.data['sourcefile'])

            template = PdfReader("template.pdf", decompress=False).pages[0]
            template_obj = pagexobj(template)

            with open(self.data['sourcefile'], 'r', newline='') as f:
                reader = csv.DictReader(f)

                for n, row in enumerate(reader, 1):
                    fn = f'{filename}-{n}.pdf'
                    outfile = os.path.join(folder, fn)
                    canvas = Canvas(outfile)

                    xobj_name = makerl(canvas, template_obj)
                    canvas.doForm(xobj_name)

                    ystart = 443

                    # Prepared by
                    canvas.drawString(170, ystart, row.get('name', ''))

                    # Date: Todays date
                    today = datetime.today()
                    canvas.drawString(410, ystart, today.strftime('%F'))

                    # Device/Program Type
                    canvas.drawString(230, ystart-28, row.get('program_type', ''))

                    # Product code
                    canvas.drawString(175, ystart-(2*28), row.get('product_code', ''))

                    # Customer
                    canvas.drawString(315, ystart-(2*28), row.get('customer', ''))

                    # Vendor
                    canvas.drawString(145, ystart-(3*28), row.get('vendor', ''))

                    ystart = 250

                    # Program Language
                    canvas.drawString(210, ystart, "Python")

                    canvas.drawString(430, ystart, row.get('n_errors', ''))

                    comments = row.get('comments', '').replace('\n', ' ')
                    if comments:
                        lines = textwrap.wrap(comments, width=65) # 45
                        first_line = lines[0]
                        remainder = ' '.join(lines[1:])

                        lines = textwrap.wrap(remainder, 75) # 55
                        lines = lines[:4]  # max lines, not including the first.

                        canvas.drawString(155, 223, first_line)
                        for n, l in enumerate(lines, 1):
                            canvas.drawString(80, 223 - (n*28), l)

                    canvas.save()

        except Exception as e:

            self.signals.error.emit(str(e))
            return

        self.signals.finished.emit()


class Window(QWidget):

    def __init__(self):
        super().__init__()

        self.threadpool = QThreadPool()

        self.sourcefile = QLineEdit()
        self.sourcefile.setDisabled(True)  # must use the file finder to select a valid file.

        self.file_select = QPushButton("Select CSV...")
        self.file_select.pressed.connect(self.choose_csv_file)

        self.generate_btn = QPushButton("Generate PDF")
        self.generate_btn.pressed.connect(self.generate)

        layout = QFormLayout()
        layout.addRow(self.sourcefile, self.file_select)
        layout.addRow(self.generate_btn)

        self.setLayout(layout)

    def choose_csv_file(self):
        filename, _ = QFileDialog.getOpenFileName(self, "Select a file", filter="CSV files (*.csv)")
        if filename:
            self.sourcefile.setText(filename)

    def generate(self):
        if not self.sourcefile.text():
            return  # If the field is empty, ignore.

        self.generate_btn.setDisabled(True)

        data = {
            'sourcefile': self.sourcefile.text(),
        }
        g = Generator(data)
        g.signals.finished.connect(self.generated)
        g.signals.error.connect(print)  # Print errors to console.
        self.threadpool.start(g)

    def generated(self):
        self.generate_btn.setDisabled(False)
        QMessageBox.information(self, "Finished", "PDFs have been generated")


app = QApplication([])
w = Window()
w.show()
app.exec()
python
from PySide2.QtWidgets import QPushButton, QLineEdit, QApplication, QFormLayout, QWidget, QTextEdit, QMessageBox, QSpinBox, QFileDialog
from PySide2.QtCore import QObject, QRunnable, QThreadPool, Signal, Slot


from reportlab.pdfgen.canvas import Canvas

import os, csv

import textwrap
from datetime import datetime

from pdfrw import PdfReader
from pdfrw.buildxobj import pagexobj
from pdfrw.toreportlab import makerl


class WorkerSignals(QObject):
    """
    Defines the signals available from a running worker thread.
    """
    error = Signal(str)
    finished = Signal()


class Generator(QRunnable):
    """
    Worker thread

    Inherits from QRunnable to handle worker thread setup, signals
    and wrap-up.

    :param data: The data to add to the PDF for generating.
    """

    def __init__(self, data):
        super().__init__()
        self.data = data
        self.signals = WorkerSignals()

    @Slot()
    def run(self):
        try:
            filename, _ = os.path.splitext(self.data['sourcefile'])
            folder = os.path.dirname(self.data['sourcefile'])

            template = PdfReader("template.pdf", decompress=False).pages[0]
            template_obj = pagexobj(template)

            with open(self.data['sourcefile'], 'r', newline='') as f:
                reader = csv.DictReader(f)

                for n, row in enumerate(reader, 1):
                    fn = f'{filename}-{n}.pdf'
                    outfile = os.path.join(folder, fn)
                    canvas = Canvas(outfile)

                    xobj_name = makerl(canvas, template_obj)
                    canvas.doForm(xobj_name)

                    ystart = 443

                    # Prepared by
                    canvas.drawString(170, ystart, row.get('name', ''))

                    # Date: Todays date
                    today = datetime.today()
                    canvas.drawString(410, ystart, today.strftime('%F'))

                    # Device/Program Type
                    canvas.drawString(230, ystart-28, row.get('program_type', ''))

                    # Product code
                    canvas.drawString(175, ystart-(2*28), row.get('product_code', ''))

                    # Customer
                    canvas.drawString(315, ystart-(2*28), row.get('customer', ''))

                    # Vendor
                    canvas.drawString(145, ystart-(3*28), row.get('vendor', ''))

                    ystart = 250

                    # Program Language
                    canvas.drawString(210, ystart, "Python")

                    canvas.drawString(430, ystart, row.get('n_errors', ''))

                    comments = row.get('comments', '').replace('\n', ' ')
                    if comments:
                        lines = textwrap.wrap(comments, width=65) # 45
                        first_line = lines[0]
                        remainder = ' '.join(lines[1:])

                        lines = textwrap.wrap(remainder, 75) # 55
                        lines = lines[:4]  # max lines, not including the first.

                        canvas.drawString(155, 223, first_line)
                        for n, l in enumerate(lines, 1):
                            canvas.drawString(80, 223 - (n*28), l)

                    canvas.save()

        except Exception as e:

            self.signals.error.emit(str(e))
            return

        self.signals.finished.emit()


class Window(QWidget):

    def __init__(self):
        super().__init__()

        self.threadpool = QThreadPool()

        self.sourcefile = QLineEdit()
        self.sourcefile.setDisabled(True)  # must use the file finder to select a valid file.

        self.file_select = QPushButton("Select CSV...")
        self.file_select.pressed.connect(self.choose_csv_file)

        self.generate_btn = QPushButton("Generate PDF")
        self.generate_btn.pressed.connect(self.generate)

        layout = QFormLayout()
        layout.addRow(self.sourcefile, self.file_select)
        layout.addRow(self.generate_btn)

        self.setLayout(layout)

    def choose_csv_file(self):
        filename, _ = QFileDialog.getOpenFileName(self, "Select a file", filter="CSV files (*.csv)")
        if filename:
            self.sourcefile.setText(filename)

    def generate(self):
        if not self.sourcefile.text():
            return  # If the field is empty, ignore.

        self.generate_btn.setDisabled(True)

        data = {
            'sourcefile': self.sourcefile.text(),
        }
        g = Generator(data)
        g.signals.finished.connect(self.generated)
        g.signals.error.connect(print)  # Print errors to console.
        self.threadpool.start(g)

    def generated(self):
        self.generate_btn.setDisabled(False)
        QMessageBox.information(self, "Finished", "PDFs have been generated")


app = QApplication([])
w = Window()
w.show()
app.exec_()
python
from PyQt6.QtWidgets import QPushButton, QLineEdit, QApplication, QFormLayout, QWidget, QTextEdit, QMessageBox, QSpinBox, QFileDialog
from PyQt6.QtCore import QObject, QRunnable, QThreadPool, pyqtSignal, pyqtSlot


from reportlab.pdfgen.canvas import Canvas

import os, csv

import textwrap
from datetime import datetime

from pdfrw import PdfReader
from pdfrw.buildxobj import pagexobj
from pdfrw.toreportlab import makerl


class WorkerSignals(QObject):
    """
    Defines the signals available from a running worker thread.
    """
    error = pyqtSignal(str)
    finished = pyqtSignal()


class Generator(QRunnable):
    """
    Worker thread

    Inherits from QRunnable to handle worker thread setup, signals
    and wrap-up.

    :param data: The data to add to the PDF for generating.
    """

    def __init__(self, data):
        super().__init__()
        self.data = data
        self.signals = WorkerSignals()

    @pyqtSlot()
    def run(self):
        try:
            filename, _ = os.path.splitext(self.data['sourcefile'])
            folder = os.path.dirname(self.data['sourcefile'])

            template = PdfReader("template.pdf", decompress=False).pages[0]
            template_obj = pagexobj(template)

            with open(self.data['sourcefile'], 'r', newline='') as f:
                reader = csv.DictReader(f)

                for n, row in enumerate(reader, 1):
                    fn = f'{filename}-{n}.pdf'
                    outfile = os.path.join(folder, fn)
                    canvas = Canvas(outfile)

                    xobj_name = makerl(canvas, template_obj)
                    canvas.doForm(xobj_name)

                    ystart = 443

                    # Prepared by
                    canvas.drawString(170, ystart, row.get('name', ''))

                    # Date: Todays date
                    today = datetime.today()
                    canvas.drawString(410, ystart, today.strftime('%F'))

                    # Device/Program Type
                    canvas.drawString(230, ystart-28, row.get('program_type', ''))

                    # Product code
                    canvas.drawString(175, ystart-(2*28), row.get('product_code', ''))

                    # Customer
                    canvas.drawString(315, ystart-(2*28), row.get('customer', ''))

                    # Vendor
                    canvas.drawString(145, ystart-(3*28), row.get('vendor', ''))

                    ystart = 250

                    # Program Language
                    canvas.drawString(210, ystart, "Python")

                    canvas.drawString(430, ystart, row.get('n_errors', ''))

                    comments = row.get('comments', '').replace('\n', ' ')
                    if comments:
                        lines = textwrap.wrap(comments, width=65) # 45
                        first_line = lines[0]
                        remainder = ' '.join(lines[1:])

                        lines = textwrap.wrap(remainder, 75) # 55
                        lines = lines[:4]  # max lines, not including the first.

                        canvas.drawString(155, 223, first_line)
                        for n, l in enumerate(lines, 1):
                            canvas.drawString(80, 223 - (n*28), l)

                    canvas.save()

        except Exception as e:

            self.signals.error.emit(str(e))
            return

        self.signals.finished.emit()


class Window(QWidget):

    def __init__(self):
        super().__init__()

        self.threadpool = QThreadPool()

        self.sourcefile = QLineEdit()
        self.sourcefile.setDisabled(True)  # must use the file finder to select a valid file.

        self.file_select = QPushButton("Select CSV...")
        self.file_select.pressed.connect(self.choose_csv_file)

        self.generate_btn = QPushButton("Generate PDF")
        self.generate_btn.pressed.connect(self.generate)

        layout = QFormLayout()
        layout.addRow(self.sourcefile, self.file_select)
        layout.addRow(self.generate_btn)

        self.setLayout(layout)

    def choose_csv_file(self):
        filename, _ = QFileDialog.getOpenFileName(self, "Select a file", filter="CSV files (*.csv)")
        if filename:
            self.sourcefile.setText(filename)

    def generate(self):
        if not self.sourcefile.text():
            return  # If the field is empty, ignore.

        self.generate_btn.setDisabled(True)

        data = {
            'sourcefile': self.sourcefile.text(),
        }
        g = Generator(data)
        g.signals.finished.connect(self.generated)
        g.signals.error.connect(print)  # Print errors to console.
        self.threadpool.start(g)

    def generated(self):
        self.generate_btn.setDisabled(False)
        QMessageBox.information(self, "Finished", "PDFs have been generated")


app = QApplication([])
w = Window()
w.show()
app.exec()
python
from PySide6.QtWidgets import QPushButton, QLineEdit, QApplication, QFormLayout, QWidget, QTextEdit, QMessageBox, QSpinBox, QFileDialog
from PySide6.QtCore import QObject, QRunnable, QThreadPool, Signal, Slot


from reportlab.pdfgen.canvas import Canvas

import os, csv

import textwrap
from datetime import datetime

from pdfrw import PdfReader
from pdfrw.buildxobj import pagexobj
from pdfrw.toreportlab import makerl


class WorkerSignals(QObject):
    """
    Defines the signals available from a running worker thread.
    """
    error = Signal(str)
    finished = Signal()


class Generator(QRunnable):
    """
    Worker thread

    Inherits from QRunnable to handle worker thread setup, signals
    and wrap-up.

    :param data: The data to add to the PDF for generating.
    """

    def __init__(self, data):
        super().__init__()
        self.data = data
        self.signals = WorkerSignals()

    @Slot()
    def run(self):
        try:
            filename, _ = os.path.splitext(self.data['sourcefile'])
            folder = os.path.dirname(self.data['sourcefile'])

            template = PdfReader("template.pdf", decompress=False).pages[0]
            template_obj = pagexobj(template)

            with open(self.data['sourcefile'], 'r', newline='') as f:
                reader = csv.DictReader(f)

                for n, row in enumerate(reader, 1):
                    fn = f'{filename}-{n}.pdf'
                    outfile = os.path.join(folder, fn)
                    canvas = Canvas(outfile)

                    xobj_name = makerl(canvas, template_obj)
                    canvas.doForm(xobj_name)

                    ystart = 443

                    # Prepared by
                    canvas.drawString(170, ystart, row.get('name', ''))

                    # Date: Todays date
                    today = datetime.today()
                    canvas.drawString(410, ystart, today.strftime('%F'))

                    # Device/Program Type
                    canvas.drawString(230, ystart-28, row.get('program_type', ''))

                    # Product code
                    canvas.drawString(175, ystart-(2*28), row.get('product_code', ''))

                    # Customer
                    canvas.drawString(315, ystart-(2*28), row.get('customer', ''))

                    # Vendor
                    canvas.drawString(145, ystart-(3*28), row.get('vendor', ''))

                    ystart = 250

                    # Program Language
                    canvas.drawString(210, ystart, "Python")

                    canvas.drawString(430, ystart, row.get('n_errors', ''))

                    comments = row.get('comments', '').replace('\n', ' ')
                    if comments:
                        lines = textwrap.wrap(comments, width=65) # 45
                        first_line = lines[0]
                        remainder = ' '.join(lines[1:])

                        lines = textwrap.wrap(remainder, 75) # 55
                        lines = lines[:4]  # max lines, not including the first.

                        canvas.drawString(155, 223, first_line)
                        for n, l in enumerate(lines, 1):
                            canvas.drawString(80, 223 - (n*28), l)

                    canvas.save()

        except Exception as e:

            self.signals.error.emit(str(e))
            return

        self.signals.finished.emit()


class Window(QWidget):

    def __init__(self):
        super().__init__()

        self.threadpool = QThreadPool()

        self.sourcefile = QLineEdit()
        self.sourcefile.setDisabled(True)  # must use the file finder to select a valid file.

        self.file_select = QPushButton("Select CSV...")
        self.file_select.pressed.connect(self.choose_csv_file)

        self.generate_btn = QPushButton("Generate PDF")
        self.generate_btn.pressed.connect(self.generate)

        layout = QFormLayout()
        layout.addRow(self.sourcefile, self.file_select)
        layout.addRow(self.generate_btn)

        self.setLayout(layout)

    def choose_csv_file(self):
        filename, _ = QFileDialog.getOpenFileName(self, "Select a file", filter="CSV files (*.csv)")
        if filename:
            self.sourcefile.setText(filename)

    def generate(self):
        if not self.sourcefile.text():
            return  # If the field is empty, ignore.

        self.generate_btn.setDisabled(True)

        data = {
            'sourcefile': self.sourcefile.text(),
        }
        g = Generator(data)
        g.signals.finished.connect(self.generated)
        g.signals.error.connect(print)  # Print errors to console.
        self.threadpool.start(g)

    def generated(self):
        self.generate_btn.setDisabled(False)
        QMessageBox.information(self, "Finished", "PDFs have been generated")


app = QApplication([])
w = Window()
w.show()
app.exec_()

You can run this app using the template.pdf and this example CSV file to generate a few TPS reports.

Things to notice --

  • We now generate multiple files, so it doesn't make much sense to open them when they're finished. Instead, we always show the "complete" message, and only once. The signal file_saved_as has been renamed to finished and we've removed the filename str since it's no longer used.
  • The QLineEdit to get the filename is disabled so it's not possible to edit directly: the only way to set a source CSV file is to select the file directly, ensuring it's there.
  • We auto-generate the output filenames, based on the import filename and the current row number. The filename is taken from the input CSV: with a CSV named tps.csv files will be named tps-1.pdf, tps-2.pdf etc. Files are written out to the folder the source CSV is in.
  • Since some rows/files might miss required fields, we use .get() on the row dictionary with a default empty string.

Possible improvements

If you feel like improving on this code, there are a few things you could try

  • Make the template and output file location configurable -- use a Qt file dialogs
  • Load the field positions from a file alongside the template (JSON) so you can use the same form with multiple templates
  • Make the fields configurable -- this gets quite tricky, but you particular types (str, datetime, int, etc.) can have specific widgets assigned to them

Continue reading

Introduction to the QGraphics framework  pyqt

The Qt Graphics View Framework allows you to develop fast and efficient 2D vector graphic scenes. Scenes can contain millions of items, each with their own features and behaviors. By using the Graphics View via PyQt you get access to this highly performant graphics layer in Python. Whether you're integrating … More
