PyQtConfig
A simple API for keeping your PyQt Widgets and config in sync

a simple API for handling, persisting and synchronising configuration within PyQt applications. This module was built initially as part of the Pathomx data analysis platform but spun out into a standalone module when it became clear it was quite useful.

This post gives a brief overview of the API features and use. It is still in development so suggestions, comments, bug reports and pull-requests are very welcome.

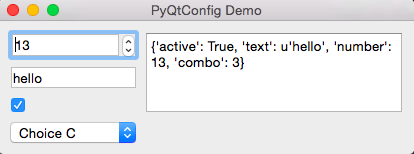

Demo of config setting with widgets #1

Features

  • consistent interface to read values from widgets, always get and set
  • seamlessly handle conversion of types from QSettings strings
  • integrated mapping handles conversions between display and internal settings, e.g. nice text in combo boxes to integer values
  • save and load configuration via dict (to JSON) or XML
  • open source and BSD licensed

Introduction

The core of the API is a ConfigManager instance that holds configuration settings (either as a Python dict, or a QSettings instance) and provides standard methods to get and set values.

Configuration parameters can have Qt widgets attached as handlers. Once attached the widget and the configuration value will be kept in sync. Setting the value on the ConfigManager will update any attached widgets and changes to the value on the widget will be reflected immmediately in the ConfigManager. Qt signals are emitted on each update.

Default values can be set and will be returned transparently if a parameter remains unset. The current state of config can be saved and reloaded via XML or exported to a flat dict.

A small application has been included in PyQtConfig to demonstrate these features (interaction with widgets requires a running QApplication). Go to the pyqtconfig install folder and run it with:

python
python -m pyqtconfig.demo

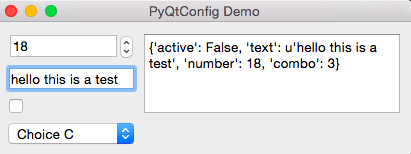

Demo of config setting with widgets #2

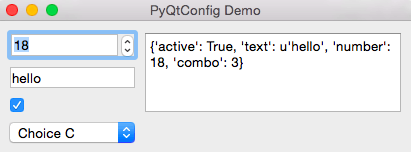

Demo of config setting with widgets #3

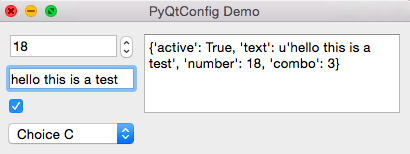

Demo of config setting with widgets #4

Demo of config setting with widgets #4

Simple usage (dictionary)

To store your settings you need to create a ConfigManager instance. This consists of a settings dictionary, a default settings dictionary and a number of helper functions to handle setting, getting and other functions.

python
from pyqtconfig import ConfigManager

config = ConfigManager()

config.set_defaults({
    'number': 13,
    'text': 'hello',
    'array': ['1','2'],
    'active': True,
})

Before values are set the default value will be returned when queried.

python
config.get('number')
13

config.set('number', 42)
config.get('number')
42

Simple usage (QSettings)

The QSettingsManager provides exactly the same API as the standard QConfigManager, the only difference is in the storage of values.

python
from pyqtconfig import QSettingsManager

settings = QSettingsManager()

settings.set('number', 42)
settings.set('text', "bla")
settings.set('array', ["a", "b"])
settings.set('active', True)

settings.get('number')
>> 42

On some platforms, versions of Qt, or Qt APIs QSettings will return strings for all values which can lead to complicated code and breakage. However, PyQtConfig is smart enough to use the type of the config parameter in defaults to auto-convert returned values.

However, you do not have to set defaults manually. As of v0.7 default values are auto-set when attaching widgets (handlers) to the config manager if they're not already set.

From this point on we'll be referring to the ConfigManager class only, but all features work identically in QSettingsManager.

Create GUI Applications with Python & Qt5
The easy way to create desktop applications

The complete guide to building GUI applications with PySide2. From the basics of creating a desktop window to the key features you need to build real apps.

Downloadable ebook (PDF, ePub) & Complete Source code

To support developers in [[ countryRegion ]] I give a [[ localizedDiscount[couponCode] ]]% discount with the code [[ couponCode ]] — Enjoy!

For [[ activeDiscount.description ]] I'm giving a [[ activeDiscount.discount ]]% discount with the code [[ couponCode ]] — Enjoy!

Adding widget handlers

So far we could have achieved the same thing with a standard Python dict/QSettings object. The real usefulness of PyQtConfig is in the ability to interact with QWidgets maintaining synchronisation between widgets and internal config, and providing a simple standard interface to retrieve values.

It's difficult to demonstrate the functionality since you need a running QApplication to make it work, and you can't do that in the interactive interpreter. The examples that follow are contrived outputs that you would see if it were possible to do that. For a real example, see the demo included in the package.

python
lineEdit = QtGui.QLineEdit()
config.add_handler('text', lineEdit)

checkbox = QtGui.QCheckBox('active')
config.add_handler('active', checkbox)

Demo of config setting with widgets #2

The values of the widgets are automatically set to the pre-set defaults. Note that if we hadn't pre-set a default value the reverse would happen, and the default would be set to the value in the widget. This allows you to define the defaults in either way.

Next we'll change the value of both widgets.

We can read out the values of the widgets via the ConfigManager using the standard get interface rather than using the widget-specific access functions.

python
config.get('text')
>> 'hello'

config.get('active')
>> True

We can also update the widgets via the ConfigManager using set.

python
config.set('text', 'new value')
config.set('active', False)

Demo of config setting with widgets #2

Mapping

Sometimes you want to display a different value in a widget than you store in the configuration. The most obvious example would be in a combo box where you want to list nice descriptive names, but want to store short names or numbers in the configuration.

To enable this PyQtConfig allows a mapper to be defined when attaching a widget to a config. Mappers are provided as tuple of 2 functions set and get that each perform the conversion required when setting and getting the value from the widget. To simplify map creation however you can also specify the mapping as a dict and PyQtConfig will create the necessary lambdas behind the scenes.

python
CHOICE_A = 1
CHOICE_B = 2
CHOICE_C = 3
CHOICE_D = 4

map_dict = {
    'Choice A': CHOICE_A,
    'Choice B': CHOICE_B,
    'Choice C': CHOICE_C,
    'Choice D': CHOICE_D,
}

config.set_default('combo', CHOICE_C)
config.get('combo')
>> 3

comboBox = QtGui.QComboBox()
comboBox.addItems( map_dict.keys() )
config.add_handler('combo', comboBox, mapper=map_dict)

Demo of config setting with widgets #2

Note how the config is set to 3 (the value of CHOICE_C) but displays "Choice C" as text.

Saving and loading data

QSettingsManager uses a QSettings object as a config store and so the saving of configuration is automatic through the Qt APIs. However, if you're using ConfigManager you will need another approach to load and save your settings (note that these functions are also available in QSettingsManager if you want them).

The simplest access is to output the stored data as a dict using as_dict().

python
config.as_dict()

This dict contains all values in the internal dictionary, with defaults used where values are not set. You can take this dict and set the defaults on a new ConfigManager to persist state.

python
config2 = ConfigManager()
config2.set_defaults( config.as_dict() )

config2.get('combo')
>> 3

You can also export and import data as XML. The two functions for handling XML import take an ElementTree root element and search for config settings under Config/ConfigSetting. This allows you to use PyQtConfig to write config into an XML file without worrying about the format.

python
import ElementTree as et

config.set('combo', CHOICE_D)

root = et.Element("MyXML")
root = config.getXMLConfig( root )

config2.setXMLConfig(root)
config2.get('combo')
>> 4

Finishing up

Hope you find PyQtConfig useful in your PyQt projects. Let me know if you have any comments, suggestions, bug reports and pull-requests.
