Q&A: Are there any built-in QIcons?
Using built-in icons for your apps.

In the tutorials on this site and in my books I recommend using the fugue icons set. This is a free set of icons from Yusuke Kamiyamane, a freelance designer from Tokyo. The set contains 3,570 icons and is a great way to add some nice visual touches to your application without much hassle.

But this isn't the only icon set available, and there's another option you may not know about. Read on for details.

Veronica asked:

Are there any built-in icons with PyQt5? I have searched the web and it seems like there are some but I can’t find any examples of them being used. Does it depend on the situation? If so, then in which cases can I use an icon without downloading it first?

First we need to clarify what is meant by built in icons -- it can mean two different things depending on context -- either Qt built-in, or system built-in (Linux only). I'll start with the Qt built-ins as that's cross-platform (they're available on Windows, MacOS and Linux).

Qt Standard Icons

Qt ships with a small set of standard icons you can use in any of your applications for common actions. The icons are all accessible through the current active application style -- available as a series of flags, which can be passed to .standardIcon to get the icon.

The following script can be used to display all the built-in icons.

python
import sys

from PyQt5.QtWidgets import QApplication, QGridLayout, QPushButton, QStyle, QWidget


class Window(QWidget):
    def __init__(self):
        super(Window, self).__init__()

        icons = [
            'SP_ArrowBack',
            'SP_ArrowDown',
            'SP_ArrowForward',
            'SP_ArrowLeft',
            'SP_ArrowRight',
            'SP_ArrowUp',
            'SP_BrowserReload',
            'SP_BrowserStop',
            'SP_CommandLink',
            'SP_ComputerIcon',
            'SP_CustomBase',
            'SP_DesktopIcon',
            'SP_DialogApplyButton',
            'SP_DialogCancelButton',
            'SP_DialogCloseButton',
            'SP_DialogDiscardButton',
            'SP_DialogHelpButton',
            'SP_DialogNoButton',
            'SP_DialogOkButton',
            'SP_DialogOpenButton',
            'SP_DialogResetButton',
            'SP_DialogSaveButton',
            'SP_DialogYesButton',
            'SP_DirClosedIcon',
            'SP_DirHomeIcon',
            'SP_DirIcon',
            'SP_DirLinkIcon',
            'SP_DirOpenIcon',
            'SP_DockWidgetCloseButton',
            'SP_DriveCDIcon',
            'SP_DriveDVDIcon',
            'SP_DriveFDIcon',
            'SP_DriveHDIcon',
            'SP_DriveNetIcon',
            'SP_FileDialogBack',
            'SP_FileDialogContentsView',
            'SP_FileDialogDetailedView',
            'SP_FileDialogEnd',
            'SP_FileDialogInfoView',
            'SP_FileDialogListView',
            'SP_FileDialogNewFolder',
            'SP_FileDialogStart',
            'SP_FileDialogToParent',
            'SP_FileIcon',
            'SP_FileLinkIcon',
            'SP_MediaPause',
            'SP_MediaPlay',
            'SP_MediaSeekBackward',
            'SP_MediaSeekForward',
            'SP_MediaSkipBackward',
            'SP_MediaSkipForward',
            'SP_MediaStop',
            'SP_MediaVolume',
            'SP_MediaVolumeMuted',
            'SP_MessageBoxCritical',
            'SP_MessageBoxInformation',
            'SP_MessageBoxQuestion',
            'SP_MessageBoxWarning',
            'SP_TitleBarCloseButton',
            'SP_TitleBarContextHelpButton',
            'SP_TitleBarMaxButton',
            'SP_TitleBarMenuButton',
            'SP_TitleBarMinButton',
            'SP_TitleBarNormalButton',
            'SP_TitleBarShadeButton',
            'SP_TitleBarUnshadeButton',
            'SP_ToolBarHorizontalExtensionButton',
            'SP_ToolBarVerticalExtensionButton',
            'SP_TrashIcon',
            'SP_VistaShield',
        ]

        layout = QGridLayout()

        for n, name in enumerate(icons):
            btn = QPushButton(name)

            pixmapi = getattr(QStyle, name)
            icon = self.style().standardIcon(pixmapi)
            btn.setIcon(icon)
            layout.addWidget(btn, n / 4, n % 4)

        self.setLayout(layout)


app = QApplication(sys.argv)

w = Window()
w.show()

app.exec_()


python
import sys

from PyQt6.QtWidgets import (QApplication, QGridLayout, QPushButton, QStyle,
                             QWidget)


class Window(QWidget):
    def __init__(self):
        super(Window, self).__init__()

        icons = [
            'SP_ArrowBack',
            'SP_ArrowDown',
            'SP_ArrowForward',
            'SP_ArrowLeft',
            'SP_ArrowRight',
            'SP_ArrowUp',
            'SP_BrowserReload',
            'SP_BrowserStop',
            'SP_CommandLink',
            'SP_ComputerIcon',
            'SP_CustomBase',
            'SP_DesktopIcon',
            'SP_DialogApplyButton',
            'SP_DialogCancelButton',
            'SP_DialogCloseButton',
            'SP_DialogDiscardButton',
            'SP_DialogHelpButton',
            'SP_DialogNoButton',
            'SP_DialogOkButton',
            'SP_DialogOpenButton',
            'SP_DialogResetButton',
            'SP_DialogSaveButton',
            'SP_DialogYesButton',
            'SP_DirClosedIcon',
            'SP_DirHomeIcon',
            'SP_DirIcon',
            'SP_DirLinkIcon',
            'SP_DirOpenIcon',
            'SP_DockWidgetCloseButton',
            'SP_DriveCDIcon',
            'SP_DriveDVDIcon',
            'SP_DriveFDIcon',
            'SP_DriveHDIcon',
            'SP_DriveNetIcon',
            'SP_FileDialogBack',
            'SP_FileDialogContentsView',
            'SP_FileDialogDetailedView',
            'SP_FileDialogEnd',
            'SP_FileDialogInfoView',
            'SP_FileDialogListView',
            'SP_FileDialogNewFolder',
            'SP_FileDialogStart',
            'SP_FileDialogToParent',
            'SP_FileIcon',
            'SP_FileLinkIcon',
            'SP_MediaPause',
            'SP_MediaPlay',
            'SP_MediaSeekBackward',
            'SP_MediaSeekForward',
            'SP_MediaSkipBackward',
            'SP_MediaSkipForward',
            'SP_MediaStop',
            'SP_MediaVolume',
            'SP_MediaVolumeMuted',
            'SP_MessageBoxCritical',
            'SP_MessageBoxInformation',
            'SP_MessageBoxQuestion',
            'SP_MessageBoxWarning',
            'SP_TitleBarCloseButton',
            'SP_TitleBarContextHelpButton',
            'SP_TitleBarMaxButton',
            'SP_TitleBarMenuButton',
            'SP_TitleBarMinButton',
            'SP_TitleBarNormalButton',
            'SP_TitleBarShadeButton',
            'SP_TitleBarUnshadeButton',
            'SP_ToolBarHorizontalExtensionButton',
            'SP_ToolBarVerticalExtensionButton',
            'SP_TrashIcon',
            'SP_VistaShield',
        ]

        layout = QGridLayout()

        for n, name in enumerate(icons):
            btn = QPushButton(name)

            pixmapi = getattr(QStyle.StandardPixmap, name)
            icon = self.style().standardIcon(pixmapi)
            btn.setIcon(icon)
            layout.addWidget(btn, n / 4, n % 4)

        self.setLayout(layout)


app = QApplication(sys.argv)

w = Window()
w.show()

app.exec()

python
import sys

from PySide2.QtWidgets import QApplication, QGridLayout, QPushButton, QStyle, QWidget


class Window(QWidget):
    def __init__(self):
        super(Window, self).__init__()

        icons = [
            'SP_ArrowBack',
            'SP_ArrowDown',
            'SP_ArrowForward',
            'SP_ArrowLeft',
            'SP_ArrowRight',
            'SP_ArrowUp',
            'SP_BrowserReload',
            'SP_BrowserStop',
            'SP_CommandLink',
            'SP_ComputerIcon',
            'SP_CustomBase',
            'SP_DesktopIcon',
            'SP_DialogApplyButton',
            'SP_DialogCancelButton',
            'SP_DialogCloseButton',
            'SP_DialogDiscardButton',
            'SP_DialogHelpButton',
            'SP_DialogNoButton',
            'SP_DialogOkButton',
            'SP_DialogOpenButton',
            'SP_DialogResetButton',
            'SP_DialogSaveButton',
            'SP_DialogYesButton',
            'SP_DirClosedIcon',
            'SP_DirHomeIcon',
            'SP_DirIcon',
            'SP_DirLinkIcon',
            'SP_DirOpenIcon',
            'SP_DockWidgetCloseButton',
            'SP_DriveCDIcon',
            'SP_DriveDVDIcon',
            'SP_DriveFDIcon',
            'SP_DriveHDIcon',
            'SP_DriveNetIcon',
            'SP_FileDialogBack',
            'SP_FileDialogContentsView',
            'SP_FileDialogDetailedView',
            'SP_FileDialogEnd',
            'SP_FileDialogInfoView',
            'SP_FileDialogListView',
            'SP_FileDialogNewFolder',
            'SP_FileDialogStart',
            'SP_FileDialogToParent',
            'SP_FileIcon',
            'SP_FileLinkIcon',
            'SP_MediaPause',
            'SP_MediaPlay',
            'SP_MediaSeekBackward',
            'SP_MediaSeekForward',
            'SP_MediaSkipBackward',
            'SP_MediaSkipForward',
            'SP_MediaStop',
            'SP_MediaVolume',
            'SP_MediaVolumeMuted',
            'SP_MessageBoxCritical',
            'SP_MessageBoxInformation',
            'SP_MessageBoxQuestion',
            'SP_MessageBoxWarning',
            'SP_TitleBarCloseButton',
            'SP_TitleBarContextHelpButton',
            'SP_TitleBarMaxButton',
            'SP_TitleBarMenuButton',
            'SP_TitleBarMinButton',
            'SP_TitleBarNormalButton',
            'SP_TitleBarShadeButton',
            'SP_TitleBarUnshadeButton',
            'SP_ToolBarHorizontalExtensionButton',
            'SP_ToolBarVerticalExtensionButton',
            'SP_TrashIcon',
            'SP_VistaShield',
        ]

        layout = QGridLayout()

        for n, name in enumerate(icons):
            btn = QPushButton(name)

            pixmapi = getattr(QStyle, name)
            icon = self.style().standardIcon(pixmapi)
            btn.setIcon(icon)
            layout.addWidget(btn, n / 4, n % 4)

        self.setLayout(layout)


app = QApplication(sys.argv)

w = Window()
w.show()

app.exec_()

python
import sys

from PySide6.QtWidgets import QApplication, QGridLayout, QPushButton, QStyle, QWidget


class Window(QWidget):
    def __init__(self):
        super(Window, self).__init__()

        icons = [
            'SP_ArrowBack',
            'SP_ArrowDown',
            'SP_ArrowForward',
            'SP_ArrowLeft',
            'SP_ArrowRight',
            'SP_ArrowUp',
            'SP_BrowserReload',
            'SP_BrowserStop',
            'SP_CommandLink',
            'SP_ComputerIcon',
            'SP_CustomBase',
            'SP_DesktopIcon',
            'SP_DialogApplyButton',
            'SP_DialogCancelButton',
            'SP_DialogCloseButton',
            'SP_DialogDiscardButton',
            'SP_DialogHelpButton',
            'SP_DialogNoButton',
            'SP_DialogOkButton',
            'SP_DialogOpenButton',
            'SP_DialogResetButton',
            'SP_DialogSaveButton',
            'SP_DialogYesButton',
            'SP_DirClosedIcon',
            'SP_DirHomeIcon',
            'SP_DirIcon',
            'SP_DirLinkIcon',
            'SP_DirOpenIcon',
            'SP_DockWidgetCloseButton',
            'SP_DriveCDIcon',
            'SP_DriveDVDIcon',
            'SP_DriveFDIcon',
            'SP_DriveHDIcon',
            'SP_DriveNetIcon',
            'SP_FileDialogBack',
            'SP_FileDialogContentsView',
            'SP_FileDialogDetailedView',
            'SP_FileDialogEnd',
            'SP_FileDialogInfoView',
            'SP_FileDialogListView',
            'SP_FileDialogNewFolder',
            'SP_FileDialogStart',
            'SP_FileDialogToParent',
            'SP_FileIcon',
            'SP_FileLinkIcon',
            'SP_MediaPause',
            'SP_MediaPlay',
            'SP_MediaSeekBackward',
            'SP_MediaSeekForward',
            'SP_MediaSkipBackward',
            'SP_MediaSkipForward',
            'SP_MediaStop',
            'SP_MediaVolume',
            'SP_MediaVolumeMuted',
            'SP_MessageBoxCritical',
            'SP_MessageBoxInformation',
            'SP_MessageBoxQuestion',
            'SP_MessageBoxWarning',
            'SP_TitleBarCloseButton',
            'SP_TitleBarContextHelpButton',
            'SP_TitleBarMaxButton',
            'SP_TitleBarMenuButton',
            'SP_TitleBarMinButton',
            'SP_TitleBarNormalButton',
            'SP_TitleBarShadeButton',
            'SP_TitleBarUnshadeButton',
            'SP_ToolBarHorizontalExtensionButton',
            'SP_ToolBarVerticalExtensionButton',
            'SP_TrashIcon',
            'SP_VistaShield',
        ]

        layout = QGridLayout()

        for n, name in enumerate(icons):
            btn = QPushButton(name)

            pixmapi = getattr(QStyle, name)
            icon = self.style().standardIcon(pixmapi)
            btn.setIcon(icon)
            layout.addWidget(btn, n / 4, n % 4)

        self.setLayout(layout)


app = QApplication(sys.argv)

w = Window()
w.show()

app.exec_()


If you run this script you'll see the following window, listing all the available icons.

Qt's Built-in Icons Qt's Built-in Icons

The full table is below --

.. .. ..
SP_ArrowBack SP_DirIcon SP_MediaSkipBackward
SP_ArrowDown SP_DirLinkIcon SP_MediaSkipForward
SP_ArrowForward SP_DirOpenIcon SP_MediaStop
SP_ArrowLeft SP_DockWidgetCloseButton SP_MediaVolume
SP_ArrowRight SP_DriveCDIcon SP_MediaVolumeMuted
SP_ArrowUp SP_DriveDVDIcon SP_MessageBoxCritical
SP_BrowserReload SP_DriveFDIcon SP_MessageBoxInformation
SP_BrowserStop SP_DriveHDIcon SP_MessageBoxQuestion
SP_CommandLink SP_DriveNetIcon SP_MessageBoxWarning
SP_ComputerIcon SP_FileDialogBack SP_TitleBarCloseButton
SP_CustomBase SP_FileDialogContentsView SP_TitleBarContextHelpButton
SP_DesktopIcon SP_FileDialogDetailedView SP_TitleBarMaxButton
SP_DialogApplyButton SP_FileDialogEnd SP_TitleBarMenuButton
SP_DialogCancelButton SP_FileDialogInfoView SP_TitleBarMinButton
SP_DialogCloseButton SP_FileDialogListView SP_TitleBarNormalButton
SP_DialogDiscardButton SP_FileDialogNewFolder SP_TitleBarShadeButton
SP_DialogHelpButton SP_FileDialogStart SP_TitleBarUnshadeButton
SP_DialogNoButton SP_FileDialogToParent SP_ToolBarHorizontalExtensionButton
SP_DialogOkButton SP_FileIcon SP_ToolBarVerticalExtensionButton
SP_DialogResetButton SP_FileLinkIcon SP_TrashIcon
SP_DialogSaveButton SP_MediaPause SP_VistaShield
SP_DialogYesButton SP_MediaPlay
SP_DirClosedIcon SP_MediaSeekBackward
SP_DirHomeIcon SP_MediaSeekForward

In our script above to get the icons we're looking them up by name on the QStyle object, using getattr -- but this is only necessary so we can iterate over the list of names and display the icon next to their name. If you want a specific icon you can access it like any other flag. For example --

python
pixmapi = QStyle.SP_MessageBoxCritical
icon = self.style().standardIcon(pixmapi)
python
pixmapi = QStyle.StandardPixmap.SP_MessageBoxCritical
icon = self.style().standardIcon(pixmapi)

In PyQt6 the flags must be accessed via QStyle.StandardPixmap. In other versions, they are available on QStyle itself.

Free Desktop Icons

On Linux desktops there is something called the Free Desktop Specification which defines standard names for icons for specific actions.

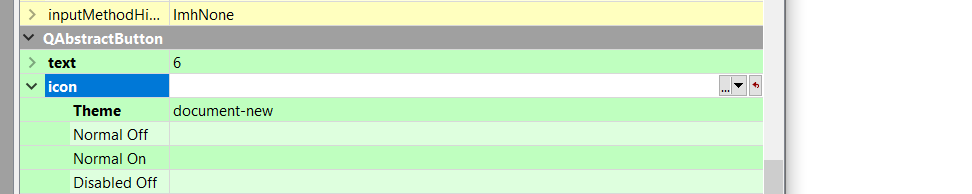

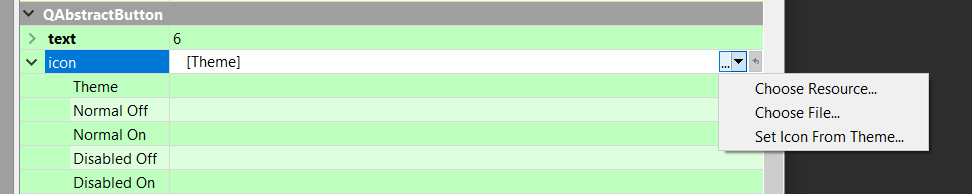

If your application uses these specific icon names (and loads the icon from a "theme") then on Linux your application will use the current icon set which is enabled on the desktop. The idea is to make all application have the same look & feel while remaining user configurable.

To use these icons within Qt Designer you would select the drop-down and choose "Set Icon From Theme..."

Icon theme in Qt Designer

You then enter the name of the icon you want to use, e.g. document-new (the full list of valid names).

Icon theme in Qt Designer

If you're not using designer, you can set icons from a theme in your code using the following.

python
        icon = QtGui.QIcon.fromTheme("document-new")
        self.pushButton_n6.setIcon(icon)

If you're developing a cross-platform application you'll still need your own icons for Windows & MacOS, but by using these theme names you can ensure that your app looks native when run on Linux.

Does the .fromTheme() option only work on Linux?

Qt themes work on all platforms, it's just that on Linux you get the theme for free. On non-Linux platforms you have to define your own icon theme from scratch. However, this is only really worth doing if you want to have a Linux-native look, for other use cases the QResource system is simpler.

Create GUI Applications with Python & Qt5
The easy way to create desktop applications

The complete guide to building GUI applications with PyQt5. From the basics of creating a desktop window to the key features you need to build real apps.

Downloadable ebook (PDF, ePub) & Complete Source code

To support developers in [[ countryRegion ]] I give a [[ localizedDiscount[couponCode] ]]% discount with the code [[ couponCode ]] — Enjoy!

For [[ activeDiscount.description ]] I'm giving a [[ activeDiscount.discount ]]% discount with the code [[ couponCode ]] — Enjoy!

Continue reading

Introduction to the QGraphics framework  pyqt

The Qt Graphics View Framework allows you to develop fast and efficient 2D vector graphic scenes. Scenes can contain millions of items, each with their own features and behaviors. By using the Graphics View via PyQt you get access to this highly performant graphics layer in Python. Whether you're integrating vector graphics views into an existing PyQt application, or simply want a powerful vector graphics interface for Python, Qt's Graphics View is what you're looking for. Some common uses of the Graphics View include data visualization, mapping applications, 2D design tools, modern data dashboards and even 2D games. In this tutorial we'll take our first steps looking at the Qt Graphics View framework, building a scene with some simple vector items. This will allow us to familiarize ourselves with the API and coordinate system, which we'll use later to build more complex examples. The Graphics View Framework The Graphics View framework consists of 3 main parts QGraphicsView, QGraphicsScene, and QGraphicsItem, each with different responsibilities. The framework can be interpreted using the Model-View paradigm, with the QGraphicsScene as the Model and the QGraphicsView as the View. Each scene can have multiple views. The QGraphicsItems within the scene can be considered as items within the model, holding the visual data that the scene combines to define the complete image. QGraphicsScene is the central component that glues everything together. It acts as a whiteboard on which all items are drawn (circles, rectangles, lines, pixmaps, etc). The QGraphicsView has the responsibility of rendering a given scene -- or part of it, with some transformation (scaling, rotating, shearing) -- to display it to the user. The view is a standard Qt widget and can be placed inside any Qt layout. QGraphicsScene provides some important functionalities out of the box, so we can use them to develop advanced applications without struggling with low-level details. For example -- Collision Detection, detect a graphics item is collided with another item. Item Selection, gives us the ability to deal with multiple items at the same time, for example, the user can select multiple items, and when pressing delete, a function asks the scene to give the list for all selected items, and then delete them. Items discovery, the scene can tell us what items are present (or part of them) at a specific point or inside some defined region, for example, if the user adds an item that intersects with a forbidden area, the program will detect them and give them another (mostly red) color. Events Propagation, the scene receives the events and then propagates them to items. To define a QGraphicsScene you define it's boundaries or sceneRect which defines the x & y origins and dimensions of the scene. If you don't provide a sceneRect it will default to the minimum bounding rectangle for all child items -- updating as items are added, moved or removed. This is flexible but less efficient. Items in the scene are represented by QGraphicsItem objects. These are the basic building block of any 2D scene, representing a shape, pixmap or SVG image to be displayed in the scene. Each item has a relative position inside the sceneRect and can have different transformation effects (scale, translate, rotate, shear). Finally, the QGraphicsView is the renderer of the scene, taking the scene and displaying it -- either wholly or in part -- to the user. The view itself can have transformations (scale, translate, rotate and shear) applied to modify the display without affecting the underlying scene. By default the view will forward mouse and keyboard events to the scene allowing for user interaction. This can be disabled by calling view.setInteractive(False). A simple scene Let's start by creating a simple scene. The following code creates QGraphicsScene, defining a 400 x 200 scene, and then displays it in a QGraphicsView. python import sys from PyQt5.QtWidgets import QGraphicsScene, QGraphicsView, QApplication app = QApplication(sys.argv) # Defining a scene rect of 400x200, with it's origin at 0,0. # If we don't set this on creation, we can set it later with .setSceneRect scene = QGraphicsScene(0, 0, 400, 200) view = QGraphicsView(scene) view.show() app.exec_() If you run this example you'll see an empty window. The empty graphics scene, shown in a QGraphicsView window. Not very exciting yet -- but this is our QGraphicsView displaying our empty scene. As mentioned earlier, QGraphicsView is a widget. In Qt any widgets without a parent display as windows. This is why our QGraphicsView appears as a window on the desktop. Adding items Let's start adding some items to the scene. There are a number of built-in graphics items which you can customize and add to your scene. In the example below we use QGraphicsRectItem which draws a rectangle. We create the item passing in it's dimensions, and then set it's position pen and brush before adding it to the scene. python import sys from PyQt5.QtWidgets import QGraphicsScene, QGraphicsView, QGraphicsRectItem, QApplication from PyQt5.QtGui import QBrush, QPen from PyQt5.QtCore import Qt app = QApplication(sys.argv) # Defining a scene rect of 400x200, with it's origin at 0,0. # If we don't set this on creation, we can set it later with .setSceneRect scene = QGraphicsScene(0, 0, 400, 200) # Draw a rectangle item, setting the dimensions. rect = QGraphicsRectItem(0, 0, 200, 50) # Set the origin (position) of the rectangle in the scene. rect.setPos(50, 20) # Define the brush (fill). brush = QBrush(Qt.red) rect.setBrush(brush) # Define the pen (line) pen = QPen(Qt.cyan) pen.setWidth(10) rect.setPen(pen) scene.addItem(rect) view = QGraphicsView(scene) view.show() app.exec_() Running the above you'll see a single, rather ugly colored, rectangle in the scene. A single rectangle in the scene Adding more items is simply a case of creating the objects, customizing them and then adding them to the scene. In the example below we add an circle, using QGraphicsEllipseItem -- a circle is just an ellipse with equal height and width. python import sys from PyQt5.QtWidgets import QGraphicsScene, QGraphicsView, QGraphicsRectItem, QGraphicsEllipseItem, QApplication from PyQt5.QtGui import QBrush, QPen from PyQt5.QtCore import Qt app = QApplication(sys.argv) # Defining a scene rect of 400x200, with it's origin at 0,0. # If we don't set this on creation, we can set it later with .setSceneRect scene = QGraphicsScene(0, 0, 400, 200) # Draw a rectangle item, setting the dimensions. rect = QGraphicsRectItem(0, 0, 200, 50) # Set the origin (position) of the rectangle in the scene. rect.setPos(50, 20) # Define the brush (fill). brush = QBrush(Qt.red) rect.setBrush(brush) # Define the pen (line) pen = QPen(Qt.cyan) pen.setWidth(10) rect.setPen(pen) ellipse = QGraphicsEllipseItem(0, 0, 100, 100) ellipse.setPos(75, 30) brush = QBrush(Qt.blue) ellipse.setBrush(brush) pen = QPen(Qt.green) pen.setWidth(5) ellipse.setPen(pen) # Add the items to the scene. Items are stacked in the order they are added. scene.addItem(ellipse) scene.addItem(rect) view = QGraphicsView(scene) view.show() app.exec_() The above code will give the following result. A scene with two items The order you add items affects the stacking order in the scene -- items added later will always appear on top of items added first. However, if you need more control you can set the stacking order using .setZValue. python ellipse.setZValue(500) rect.setZValue(200) Now the circle (ellipse) appears above the rectangle. Using Zvalue to order items in the scene Try experimenting with setting the Z value of the two items -- you can set it before or after the items are in the scene, and can change it at any time. Z in this context refers to the Z coordinate. The X & Y coordinates are the horizontal and vertical position in the scene respectively. The Z coordinate determines the relative position of items toward the front and back of the scene -- coming "out" of the screen towards the viewer. There are also the convenience methods .stackBefore() and .stackAfter() which allow you to stack your QGraphicsItem behind, or in front of another item in the scene. python ellipse.stackAfter(rect) Making items moveable Our two QGraphicsItem objects are currently fixed in position where we place them, but they don't have to be! As already mentioned Qt's Graphics View framework allows items to respond to user input, for example allowing them to be dragged and dropped around the scene at will. Simple functionality like is actually already built in, you just need to enable it on each QGraphicsItem. To do that we need to set the flag QGraphicsItem.GraphicsItemFlags.ItemIsMoveable on the item. The full list of graphics item flags is available here. python import sys from PyQt5.QtWidgets import QGraphicsScene, QGraphicsView, QGraphicsItem, QGraphicsRectItem, QGraphicsEllipseItem, QApplication from PyQt5.QtGui import QBrush, QPen from PyQt5.QtCore import Qt app = QApplication(sys.argv) # Defining a scene rect of 400x200, with it's origin at 0,0. # If we don't set this on creation, we can set it later with .setSceneRect scene = QGraphicsScene(0, 0, 400, 200) # Draw a rectangle item, setting the dimensions. rect = QGraphicsRectItem(0, 0, 200, 50) # Set the origin (position) of the rectangle in the scene. rect.setPos(50, 20) # Define the brush (fill). brush = QBrush(Qt.red) rect.setBrush(brush) # Define the pen (line) pen = QPen(Qt.cyan) pen.setWidth(10) rect.setPen(pen) ellipse = QGraphicsEllipseItem(0, 0, 100, 100) ellipse.setPos(75, 30) brush = QBrush(Qt.blue) ellipse.setBrush(brush) pen = QPen(Qt.green) pen.setWidth(5) ellipse.setPen(pen) # Add the items to the scene. Items are stacked in the order they are added. scene.addItem(ellipse) scene.addItem(rect) ellipse.setFlag(QGraphicsItem.ItemIsMovable) view = QGraphicsView(scene) view.show() app.exec_() In the above example we've set ItemIsMovable on the ellipse only. You can drag the ellipse around the scene -- including behind the rectangle -- but the rectangle itself will remain locked in place. Experiment with adding more items and configuring the moveable status. If you want an item to be selectable you can enable this by setting the ItemIsSelectable flag, for example here using .setFlags() to set multiple flags at the same time. python ellipse.setFlags(QGraphicsItem.ItemIsMovable | QGraphicsItem.ItemIsSelectable) If you click on the ellipse you'll now see it surrounded by a dashed line to indicate that it is selected. We'll look at how to use item selection in more detail in a later tutorial. A selected item in the scene, highlighted with dashed lines Another way to create objects. So far we've been creating items by creating the objects and then adding them to the scene. But you can also create an object in the scene directly by calling one of the helper methods on the scene itself, e.g. scene.addEllipse(). This creates the object and returns it so you can modify it as before. python import sys from PyQt5.QtWidgets import QGraphicsScene, QGraphicsView, QGraphicsRectItem, QApplication from PyQt5.QtGui import QBrush, QPen from PyQt5.QtCore import Qt app = QApplication(sys.argv) scene = QGraphicsScene(0, 0, 400, 200) rect = scene.addRect(0, 0, 200, 50) rect.setPos(50, 20) # Define the brush (fill). brush = QBrush(Qt.red) rect.setBrush(brush) # Define the pen (line) pen = QPen(Qt.cyan) pen.setWidth(10) rect.setPen(pen) view = QGraphicsView(scene) view.show() app.exec_() Feel free to use whichever form you find most comfortable in your code. You can only use this approach for the built-in QGraphicsItem object types. Building a more complex scene So far we've built a simple scene using the basic QGraphicsRectItem and QGraphicsEllipseItem shapes. Now let's use some other QGraphicsItem objects to build a more complex scene, including lines, text and QPixmap (images). python from PyQt5.QtCore import QPointF, Qt from PyQt5.QtWidgets import QGraphicsRectItem, QGraphicsScene, QGraphicsView, QApplication from PyQt5.QtGui import QBrush, QPainter, QPen, QPixmap, QPolygonF import sys app = QApplication(sys.argv) scene = QGraphicsScene(0, 0, 400, 200) rectitem = QGraphicsRectItem(0, 0, 360, 20) rectitem.setPos(20, 20) rectitem.setBrush(QBrush(Qt.red)) rectitem.setPen(QPen(Qt.cyan)) scene.addItem(rectitem) textitem = scene.addText("QGraphics is fun!") textitem.setPos(100, 100) scene.addPolygon( QPolygonF( [ QPointF(30, 60), QPointF(270, 40), QPointF(400, 200), QPointF(20, 150), ]), QPen(Qt.darkGreen), ) pixmap = QPixmap("cat.jpg") pixmapitem = scene.addPixmap(pixmap) pixmapitem.setPos(250, 70) view = QGraphicsView(scene) view.setRenderHint(QPainter.Antialiasing) view.show() app.exec_() If you run the example above you'll see the following scene. Scene with multiple items including a rectangle, polygon, text and a pixmap. Let's step through the code looking at the interesting bits. Polygons are defined using a series of QPointF objects which give the coordinates relative to the items position. So, for example if you create a polygon object with a point at 30, 20 and then move this polygon object X & Y coordinates 50, 40 then the point will be displayed at 80, 60 in the scene. Points inside an item are always relative to the item itself, and item coordinates are always relative to the scene -- or the item's parent, if it has one. We'll take a closer look at the Graphics View coordinate system in the next tutorial. To add an image to the scene we can open it from a file using QPixmap(). This creates a QPixmap object, which can then in turn add to the scene using scene.addPixmap(pixmap). This returns a QGraphicsPixmapItem which is the QGraphicsItem type for the pixmap -- a wrapper than handles displaying the pixmap in the scene. You can use this object to perform any changes to item in the scene. The multiple layers of objects can get confusing, so it's important to choose sensible variable names which make clear the distinction between, e.g. the pixmap itself and the pixmap item that contains it. Finally, we set the flag RenderHint,Antialiasing on the view to smooth the edges of diagonal lines. You almost always want to enable this on your views as otherwise any rotated objects will look very ugly indeed. Below is our scene without antialiasing enabled, you can see the jagged lines on the polygon. Scene with antialiasing disabled. Antialiasing has a (small) performance impact however, so if you are building scenes with millions of rotated items it may in some cases make sense to turn it off. Adding graphics views to Qt layouts The QGraphicsView is subclassed from QWidget, meaning it can be placed in layouts just like any other widget. In the following example we add the view to a simple interface, with buttons which perform a basic effect on the view -- raising and lowering selected item's ZValue. This has the effect of allowing us to move items in front and behind other objects. The full code is given below. python import sys from PyQt5.QtCore import Qt from PyQt5.QtGui import QBrush, QPainter, QPen from PyQt5.QtWidgets import ( QApplication, QGraphicsEllipseItem, QGraphicsItem, QGraphicsRectItem, QGraphicsScene, QGraphicsView, QHBoxLayout, QPushButton, QSlider, QVBoxLayout, QWidget, ) class Window(QWidget): def __init__(self): super().__init__() # Defining a scene rect of 400x200, with it's origin at 0,0. # If we don't set this on creation, we can set it later with .setSceneRect self.scene = QGraphicsScene(0, 0, 400, 200) # Draw a rectangle item, setting the dimensions. rect = QGraphicsRectItem(0, 0, 200, 50) rect.setPos(50, 20) brush = QBrush(Qt.red) rect.setBrush(brush) # Define the pen (line) pen = QPen(Qt.cyan) pen.setWidth(10) rect.setPen(pen) ellipse = QGraphicsEllipseItem(0, 0, 100, 100) ellipse.setPos(75, 30) brush = QBrush(Qt.blue) ellipse.setBrush(brush) pen = QPen(Qt.green) pen.setWidth(5) ellipse.setPen(pen) # Add the items to the scene. Items are stacked in the order they are added. self.scene.addItem(ellipse) self.scene.addItem(rect) # Set all items as moveable and selectable. for item in self.scene.items(): item.setFlag(QGraphicsItem.ItemIsMovable) item.setFlag(QGraphicsItem.ItemIsSelectable) # Define our layout. vbox = QVBoxLayout() up = QPushButton("Up") up.clicked.connect(self.up) vbox.addWidget(up) down = QPushButton("Down") down.clicked.connect(self.down) vbox.addWidget(down) rotate = QSlider() rotate.setRange(0, 360) rotate.valueChanged.connect(self.rotate) vbox.addWidget(rotate) view = QGraphicsView(self.scene) view.setRenderHint(QPainter.Antialiasing) hbox = QHBoxLayout(self) hbox.addLayout(vbox) hbox.addWidget(view) self.setLayout(hbox) def up(self): """ Iterate all selected items in the view, moving them forward. """ items = self.scene.selectedItems() for item in items: z = item.zValue() item.setZValue(z + 1) def down(self): """ Iterate all selected items in the view, moving them backward. """ items = self.scene.selectedItems() for item in items: z = item.zValue() item.setZValue(z - 1) def rotate(self, value): """ Rotate the object by the received number of degrees """ items = self.scene.selectedItems() for item in items: item.setRotation(value) app = QApplication(sys.argv) w = Window() w.show() app.exec() If you run this, you will get a window like that shown below. By selecting an item in the graphics view and then clicking either the "Up" or "Down" button you can move items up and down within the scene -- behind and in front of one another. The items are all moveable, so you can drag them around too. Clicking on the slider will rotate the currently selected items by the set number of degrees. A graphics scene with some custom controls The raising and lowering is handled by our custom methods up and down, which work by iterating over the currently selected items in the scene -- retrieved using scene.selectedItems() and then getting the items z value and increasing or decreasing it respectively. python def up(self): """ Iterate all selected items in the view, moving them forward. """ items = self.scene.selectedItems() for item in items: z = item.zValue() item.setZValue(z + 1) While rotation is handled using the item.setRotation method. This receives the current angle from the QSlider and again, applies it to any currently selected items in the scene. python def rotate(self, value): """ Rotate the object by the received number of degrees. """ items = self.scene.selectedItems() for item in items: item.setRotation(value) Take a look at the QGraphicsItem documentation for some other properties you can control with widgets and try extending the interface to allow you to change them dynamically. Hopefully this quick introduction to the Qt Graphics View framework has given you some ideas of what you can do with it. In the next tutorials we'll look at how events and user interaction can be handled on items and how to create custom & compound items for your own scenes. More
